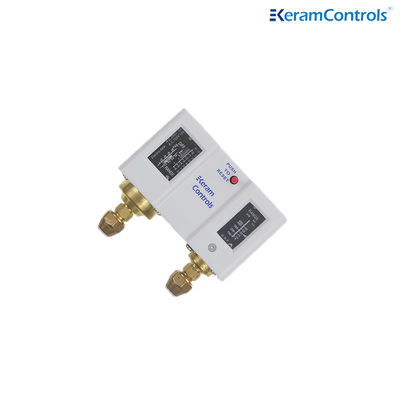

SPDT Dual Pressure Switch For Controlling Air Or Liquid

SPDT Dual Pressure Switch For Controlling Air Or Liquid
SPDT Dual Pressure Switch For Controlling Air Or Liquid SPDT Dual Pressure Switch For Controlling Air Or Liquid

Large Image :  SPDT Dual Pressure Switch For Controlling Air Or Liquid

Product Details:
Place of Origin: China
Brand Name: KeramControls
Certification: CE
Model Number: Q830 Series
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $7-$10/pic
Packaging Details: package
Delivery Time: 7 days
Supply Ability: 10000pics/month

SPDT Dual Pressure Switch For Controlling Air Or Liquid

Description
Operating Temperature:: -20~120℃ Material: Stainless Steel
Ingress Protection: IP54 High Pressure: 8-30bar
Lower Presure: -0.5-6bar
High Light:

SPDT Dual Pressure Switch

,

IP54 Dual Pressure Switch

,

30bar Hvac Pressure Switch



SPDT dual pressure switch for controlling air or liquid



Description

What is the two pressure used in pressure switch?

There are two main types of pressure switches: mechanical pressure and electronic pressure switches. A mechanical pressure switch has a mechanical pressure-sensing part that deforms according to the fluid pressure.



  • Q830 series dual pressure controls can be not only used in fluorinated refrigerant, but also in the air
  • and liquid (allowed liquid temp. -20 to 120°C)
  • Adjustable range and differential settings.
  • Renovated SPDT micro-switch ensures the reliable switch function.
  • Flexible mounting bracket suits various kids of application.
  • Upper lid is optional (IP44)
  • Various connections are available on request.
  • Automatic and manual reset version
  • The material of bellows is copper and pressure interface is brass.
  • CE approval

Specification



Model Low pressure(bar) High pressure(bar) Reset form(bar) Factory setting(bar)
Pressure adjust range Differential Pressure adjust range Differential Low pressure High pressure Low pressure High pressure
OFF ON OFF ON
Q830 -0.5~6 -0.6~4 8~30 3~5(fixed) Auto Auto 3 2 20 15
Q830HM -0.5~6 -0.6~4 8~30 ≤5 Auto Manual 3 2 20 Manual reset
Q830HLM -0.5~6 ≤1 8~30 ≤5 Manual Manual 3 Manual 20 Manual reset

Dimensions(mm)



SPDT Dual Pressure Switch For Controlling Air Or Liquid 0


Electric Wiring



Rated Amps(A)

Rated Voltage(V)

Power Factory

(Cosφ)

125/250V

AC

Non-Industry Current 1 12
Industry Current Full Load 0.75 12
Locked Roter 0.45 72

Connection & Installation



SPDT Dual Pressure Switch For Controlling Air Or Liquid 1


Mounting Plate

SPDT Dual Pressure Switch For Controlling Air Or Liquid 2

SPDT Dual Pressure Switch For Controlling Air Or Liquid 3



SPDT Dual Pressure Switch For Controlling Air Or Liquid 4
