Replaceable Dwyer Differential Air Pressure Switch
Place of Origin:
China
Brand Name:
Keramcontrols
Certification:
CE,RoHS
Model Number:
QAD
Minimum Order Quantity:
10
| Model: | QAD | Contact Arrangement: | SPDT |
|---|---|---|---|
| Media: | Air,non-combustible And Non-aggressive Gasses | Max Operating Pressure: | 10kPa |
| Mounting Position: | Diaphragm In Any Vertical Plane | Degree Of Protection: | IP54(with Cover) |
| Operating Temperature: | -40℃to 85℃ | ||
| Highlight |
Dwyer Differential Air Pressure Switch,SPDT Differential Air Pressure Switch,Replaceable Hvac Pressure Switch |
||
Product Description

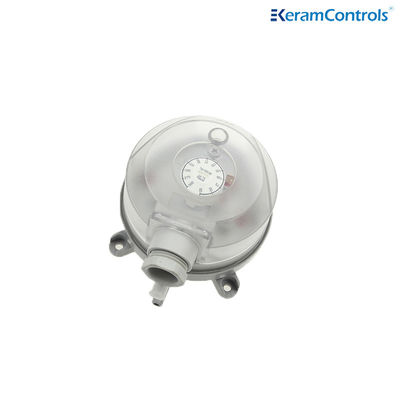

Replaceable Dwyer Differential Air Pressure Switch
Description
QAD differential pressure switch is used for fan status and dirty filter applications. A knob with pressure values on it allows the setpoint to be adjusted visually in the field. The plastic duct probe tubes, flexible silicon tubing and the mounting screws are included with all models.
Technical Specifications
| Model | QAD |
| Media | Air,non-combustible and non-aggressive gasses |
| Max Operating Pressure | 10kPa |
| Mounting Position | Diaphragm in any vertical plane |
| Degree of protection | IP54(with cover) |
| Operating Temperature | -40℃to 85℃ |
| Contact Arrangement | SPDT |
| Electrical Rating | Resistance: Initial: < 50 milliohms; |
| Current1.5A resistive(0.4A inductive) 250V | |
| Electric Connection | 6.3x0.8 blade 46244 or screw terminals |
| Material | Housing:ABS |
| Duct connectors: ABS | |
| Membrane: Silicone | |
| Cable sleeve:PVC | |
| Weight | 0.15kg(0.35kg with flexible pipe) |
| Connection | φ6.0mm for tube connection |
| Approval | UL,CE,RoHS |
Dimensions(mm)
Installation Connections
QAD series air pressure controls is factory-calibrated for vertical position. If installed horizontally, this will affect the switching point as following:
• with cover facing upwards, switching point is 15Pa higher than scale;
• with cover facing downwards, switching point is 15Pa lower than scale.
Note: Do not install upside down with trip pressures of less than 50pa!
Electric Wiring
Product Range
| Model | Pressure Range | Differential | Tolerance |
| QAD-1 | 20~200Pa | 10Pa | ±15% |
| QAD-2 | 30~300Pa | 10Pa | ±15% |
| QAD-3 | 40~400Pa | 20Pa | ±15% |
| QAD-4 | 50~500Pa | 20Pa | ±15% |
| QAD-5 | 200~1000Pa | 100Pa | ±15% |
| QAD-6 | 500~2500Pa | 150Pa | ±15% |
| QAD-7 | 1000~5000Pa | 250Pa | ±15% |
- The performances stated in this sheet can be modified without any prior notice due to design improvements
