Product Details:
|
| Operating Humidity: | 0...100%RH | Temperature Range: | DIP Switch |
|---|---|---|---|
| Display: | Blacklight LCD | ||
| Highlight: | Hvac Temperature And Humidity Sensor,Replaceable Temperature And Humidity Sensor,Replaceable Vaisala Temp Humidity Sensor |
||
The temperature and humidity sensor mostly uses the temperature and humidity integrated probe as the temperature measuring element to collect the temperature and humidity signals, and after the circuit processing such as voltage stabilization filtering, operational amplification, nonlinear correction, V/I conversion, constant current and reverse protection, it can be converted into the current signal or voltage signal output which is linear with the temperature and humidity, and can also be directly output through the 485 of the main control chip.
Large size backlight display
More convenient wiring and setting
Cable size φ5…12mm
Prevent the pollution of the shell surface in harsh environment

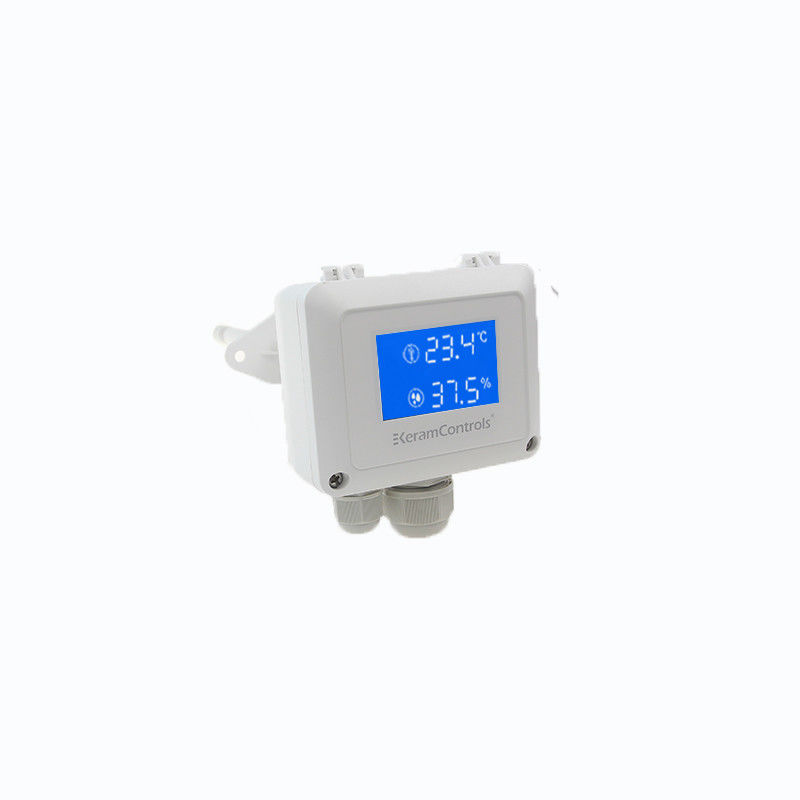

| Model | KTH500 |
| Power Supply | 16-30VDC(2wire 4-20mA)/16-30V AC or V DC (0-5V/0-10V/4-20mA/RS-485 ) |
| Output | 4-20mA/0-5V/0-10V/RS-485 |
| Operating Temperature | -30…+70℃ |
| Storage Temperature | -40…+60℃ |
| Operating Humidity | 0...100%RH |
| Temperature Range | DIP Switch |
| Display | Backlight LCD |
| Maximum Wind/Flow Speed | 30m/s |
| Electromagnetic compliance | EN61326-1,Industrial Environment |
| Housing Material | PC&ABS,UL94V-0 |
| Protection Class | IP65/NEMA 4 |
| Cable Gland | M16*1.5 |
| Measurement Performance-Temperature | |
| Measurement Range | -35...+80℃ |
| Accuracy | ±0.3℃(20-60℃) |
| Temperature Dependence | ±0.01℃/℃ |
| Measurement Performance-Humidity | |
| Measurement Range | 0...100%RH |
| Accuracy | ±2%(0-90% @25℃)/±3%(90-100%@25℃) |
| Stability in Typical HVAC Applications | ±0.01RH/Year |
KTH500——Output——Installation——Filter
| Model | Output | Installation | Filter | |||
| KTH500 | 4-20mA(2 wire) | (E) | Wall | (W) | PTFE | (P) |
| 4-20mA(3 wire) | (F) | Duct | (D) | Stainless | (S) | |
| 0-5V/0-10VAD(3 wire) | (G) | |||||
| RS-485 | (H) | |||||
