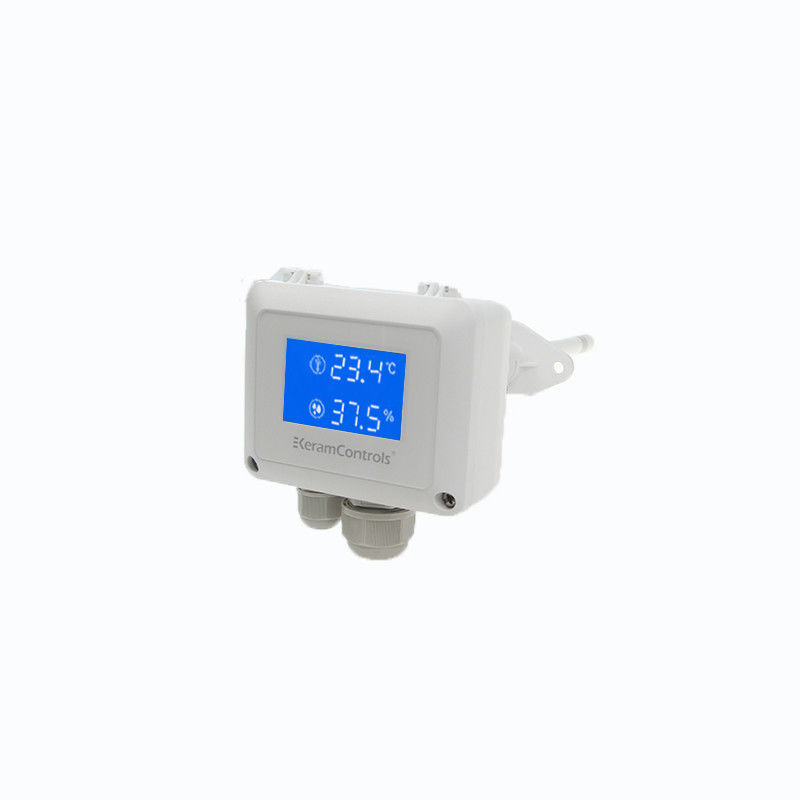

Replaceable Vaisala Temp Humidity Transducer With Backlight LCD Display

Replaceable Vaisala Temp Humidity Transducer With Backlight LCD Display
Replaceable Vaisala Temp Humidity Transducer With Backlight LCD Display
Replaceable Vaisala Temp Humidity Transducer With Backlight LCD Display Replaceable Vaisala Temp Humidity Transducer With Backlight LCD Display Replaceable Vaisala Temp Humidity Transducer With Backlight LCD Display

Large Image :  Replaceable Vaisala Temp Humidity Transducer With Backlight LCD Display

Product Details:
Place of Origin: China
Brand Name: Keramcontrols
Certification: CE
Model Number: KTH500
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $55-$75/pic
Packaging Details: Carton
Delivery Time: 7days
Payment Terms: L/C, T/T
Supply Ability: 1000pics/month

Replaceable Vaisala Temp Humidity Transducer With Backlight LCD Display

Description
Temperature Range: DIP Switch Display: Blacklight LCD
Temperature-measurement Range: −35 ··· +80 °C Accuracy: ±2%(0-90% @25℃)/±3%(90-100%@25℃)
Humidity-measurement Range: 0 ··· 100 %RH Housing Protection: IP65
Housing Material: PC&ABS,UL94-V0 Operating Temperature: -35 ··· +70°C
High Light:

Vaisala Temp Humidity Transducer

,

Replaceable Vaisala Temp Humidity Transducer

,

Backlight LCD Display Humidity Transmitter



Replaceable vaisala temp humidity transducer



Description



Temperature and humidity sensor is a sensor device equipped with humidity and thermal sensitive elements, which can be used to measure temperature and humidity. Some have on-site display, and some do not. Temperature and humidity sensors are widely used in various fields of production and life due to their small size and stable performance.


Feature



  • LCD display

Large size backlight display

  • Shell connected by hinge

More convenient wiring and setting

  • M16 M20 double cable gland

Cable size φ5…12mm

  • Smooth and flflat surface

Prevent the pollution of the shell surface in harsh environment

  • IP65/NEMA4

Application



  • HVAC system
  • Greenhouse
  • Food transportation
  • Cold storage and refrigeration
  • Clean room environment monitoring

Technical Data



Model KTH500
Power Supply 16-30VDC(2wire 4-20mA)/16-30V AC or V DC (0-5V/0-10V/4-20mA/RS-485 )
Output 4-20mA/0-5V/0-10V/RS-485
Operating Temperature -30…+70℃
Storage Temperature -40…+60℃
Operating Humidity 0...100%RH
Temperature Range DIP Switch
Display Backlight LCD
Maximum Wind/Flow Speed 30m/s
Electromagnetic compliance EN61326-1,Industrial Environment
Housing Material PC&ABS,UL94V-0
Protection Class IP65/NEMA 4
Cable Gland M16*1.5
Measurement Performance-Temperature
Measurement Range -35...+80℃
Accuracy ±0.3℃(20-60℃)
Temperature Dependence ±0.01℃/℃
Measurement Performance-Humidity
Measurement Range 0...100%RH
Accuracy ±2%(0-90% @25℃)/±3%(90-100%@25℃)
Stability in Typical HVAC Applications ±0.01RH/Year

Dimension(mm)



Replaceable Vaisala Temp Humidity Transducer With Backlight LCD Display 0Replaceable Vaisala Temp Humidity Transducer With Backlight LCD Display 1


Measuring range adjustment



Replaceable Vaisala Temp Humidity Transducer With Backlight LCD Display 2


Output setting(3 wire Model)



Replaceable Vaisala Temp Humidity Transducer With Backlight LCD Display 3


Ordering guide



KTH500——Output——Installation——Filter



Model Output Installation Filter
KTH500 4-20mA(2 wire) (E) Wall (W) PTFE (P)
4-20mA(3 wire) (F) Duct (D) Stainless (S)
0-5V/0-10VAD(3 wire) (G)
RS-485 (H)



Replaceable Vaisala Temp Humidity Transducer With Backlight LCD Display 4

Replaceable Vaisala Temp Humidity Transducer With Backlight LCD Display 5Replaceable Vaisala Temp Humidity Transducer With Backlight LCD Display 6
