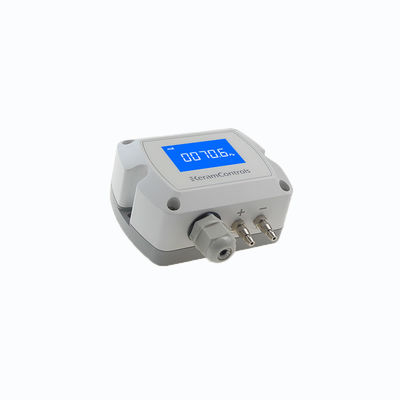

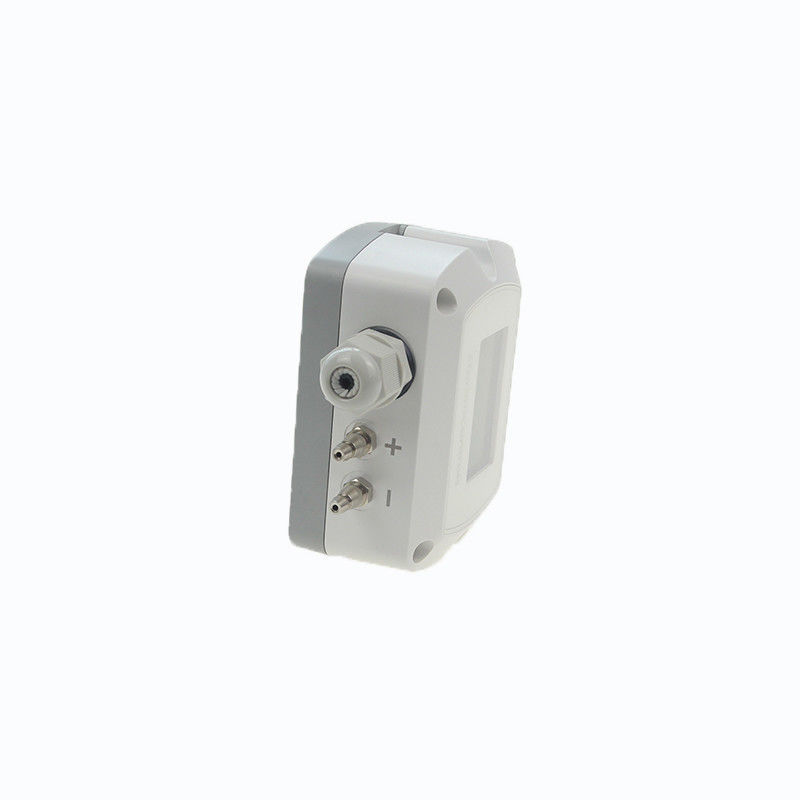

Manual Calibration Water Differential Pressure Sensor Customized

Manual Calibration Water Differential Pressure Sensor Customized
Manual Calibration Water Differential Pressure Sensor Customized
Manual Calibration Water Differential Pressure Sensor Customized Manual Calibration Water Differential Pressure Sensor Customized Manual Calibration Water Differential Pressure Sensor Customized

Large Image :  Manual Calibration Water Differential Pressure Sensor Customized

Product Details:
Place of Origin: China
Brand Name: KeramControls
Certification: CE
Model Number: KDP210
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $69-$51/pic
Packaging Details: Carton
Delivery Time: 7-10days
Payment Terms: T/T, L/C
Supply Ability: 2000pic/month

Manual Calibration Water Differential Pressure Sensor Customized

Description
Media: Air And Neutral Gases Auto Zero: Manual Calibration
Protection Class: IP65/NEMA 4 Accuracy: <±1% FS@-5 To +65℃
Operating Temperature: -20 ··· +70°C Housing Protection: IP65
High Light:

IP65 Water Differential Pressure Sensor

,

NEMA4 Water Differential Pressure Sensor

,

CE Differential Pressure Level Sensor



water differential pressure sensor



Description



Differential pressure sensor is a device for measuring pressure or differential pressure. It usually consists of two sensitive diaphragms close to each other. When the pressure of the measured medium changes the distance between the two diaphragms slightly, the corresponding electrical signal will be generated on the sensitive diaphragm. This kind of sensor using direct contact to measure pressure is called pressure sensor; The indirect measurement using isolation membrane is called relative pressure sensor.


Feature



  • Ranges from -25/+25Pa to -10000/+10000Pa (according to models)
  • Auto zero manual calibration
  • Voltage, current, digital signal output
  • Standard accuracy <±1% FS
  • IP65 house protection

Application



  • HVAC system
  • Pharmaceutical clean rooms
  • Electronic clean rooms
  • Medical clean rooms
  • Commercial buildings
  • Public transport hub

Technical data



Model KDP210
Measurement Units Pa,mmH2O,inWG,mmHG,KPa,mbar
Accuracy <±1% FS@-5 to +65℃
Response Time 0.5s
Repeat Stability ±0.01 % at FS /Year
Resolution 0.1 Pa; 0.1 mmH2O; 0.01mbar; 0.01mmHG
Media Air and neutral gases
Operating Temperature -20…+70℃
Storage Temperature -40…+60℃
Power Consumption <1.5W
Tolerated over pressure x15
Power Supply 16~30VAC/DC (3wire) / 18~30VDC (2wire)
Output Signal 4-20mA(2wire)
4-20mA(3wire)
0~5V/0~10VDC(3wire)
RS-485
Customized
Auto Zero Manual calibration
Housing Material PC&ABS,UL94V-0
Protection Class IP65/NEMA4
Display Backlight LCD display
Cable Gland M16*1.5

Dimension(mm)



Manual Calibration Water Differential Pressure Sensor Customized 0

Manual Calibration Water Differential Pressure Sensor Customized 1


Measuring range adjustment



Manual Calibration Water Differential Pressure Sensor Customized 2


Output setting(3 wire Model)



Manual Calibration Water Differential Pressure Sensor Customized 3

Manual Calibration Water Differential Pressure Sensor Customized 4


Manual Zero-point correction



Manual Calibration Water Differential Pressure Sensor Customized 5


Ordering guide



KDP210-Range-display-output



Model Ranges Display output
KDP210 -100~+100Pa (1) LCD backlight (D) 4-20mA(2 wire) (E)
-1000~+1000Pa (2)     4-20mA(3 wire) (F)
-2000~+2000Pa (3)     0-5/0-10VDC (3 wire) (G)
-10000~+10000Pa (4)     RS-485 (H)
        Customized



Manual Calibration Water Differential Pressure Sensor Customized 6Manual Calibration Water Differential Pressure Sensor Customized 7

Manual Calibration Water Differential Pressure Sensor Customized 8
