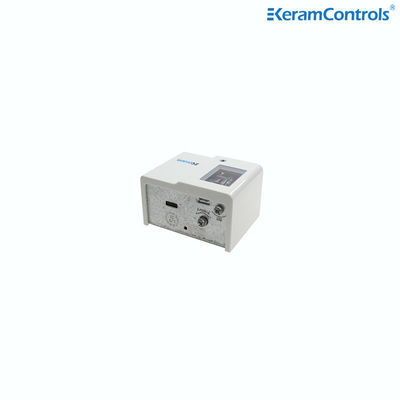

Brass SPDT Adjustable Pressure Switch For Water Pump
| Certificate: | CE | Pressure Interface: | Brass |
|---|---|---|---|
| Micro-switch: | SPDT | Housing Protection: | IP44 |
| Highlight |
SPDT Adjustable Pressure Switch,IP44 Brass Adjustable Pressure Switch,SPDT Water Pump Pressure Switch |
||
Adjustable pressure switch for water pump
Description
The pressure switch is purely mechanical deformation that causes the microswitch to act. When the pressure increases, different sensing pressure components (diaphragm, bellows, piston) will deform and move upward. Through the mechanical structure such as handrail spring, the microswitch at the top end will be finally activated to make the electrical signal output. The setting mode of UE pressure switch can be divided into continuous displacement type and force balance type from the functional principle.
Feature
- Q series single pressure controls can be not only used in fluorinated refrigerant, but also in the air and liquid(allowed liquid temp. -20 to 120°C)
- Adjustable range and differential settings
- Renovated SPDT micro-switch ensures the reliable switch function
- Flexible mounting bracket suits various kids of application
- Upper lid is optional (IP44)
- Various connections are available on request
- Automatic and manual reset version
- The material of bellows is copper and pressure interface is brass
- Several models available in drip-proof enclosure for marine applications or in explosion-proof enclosure for special applications
- CE approval
Technical Data
| Model | Range(bar) | Differential(bar) | Factory setting(bar) | Max bellows pressure | |||
| Min | Max | Min | Max | OFF | ON | ||
| Q3 | -0.5 | 3 | 0.35 | 1.5 | 2 | 1 | 16.5 |
| Q6 | -0.5 | 6 | 0.6 | 4 | 3 | 2 | 16.5 |
| Q6M | -0.5 | 6 | ≤1 | 3 | Manual reset | 16.5 | |
| Q10 | 1 | 10 | 1 | 3 | 6 | 5 | 16.5 |
| Q16 | 5 | 16 | 1 | 4 | 10 | 8 | 33 |
| Q20 | 5 | 20 | 2 | 5 | 16 | 3 | 33 |
| Q30D | 5 | 30 | 3 | 10 | 20 | 15 | 33 |
| Q30 | 6 | 30 | 3-5(fixed) | 20 | 15-17 | 33 | |
| Q30M | 6 | 30 | ≤4 | 20 | Manual reset | 33 | |
Note:
Calibration unit on scale plate with “bar” & “psig”, could be revised into “Mpa”& “kgf/cm2” if required by customers. Connections could have selections as British Flare (E), solder (C) and capillary (S).
Dimensions (mm)
Electric Rating
|
125V AC |
250V AC |
24V DC |
||
| Non-Inductive Current | 20A | 10A | 10A | ||
| Inductive Current | Full Load Current | 15A | 8A | 8A | |
| Locked Roter | 72A | 64A | |||
Electric wiring
IP44 SPDT Brass Adjustable Pressure Switch For Water Pump
Renovated SPDT Adjustable Air Pressure Switch CE Certificated
16.5bar SPDT Adjustable Pressure Switches -20~120℃
