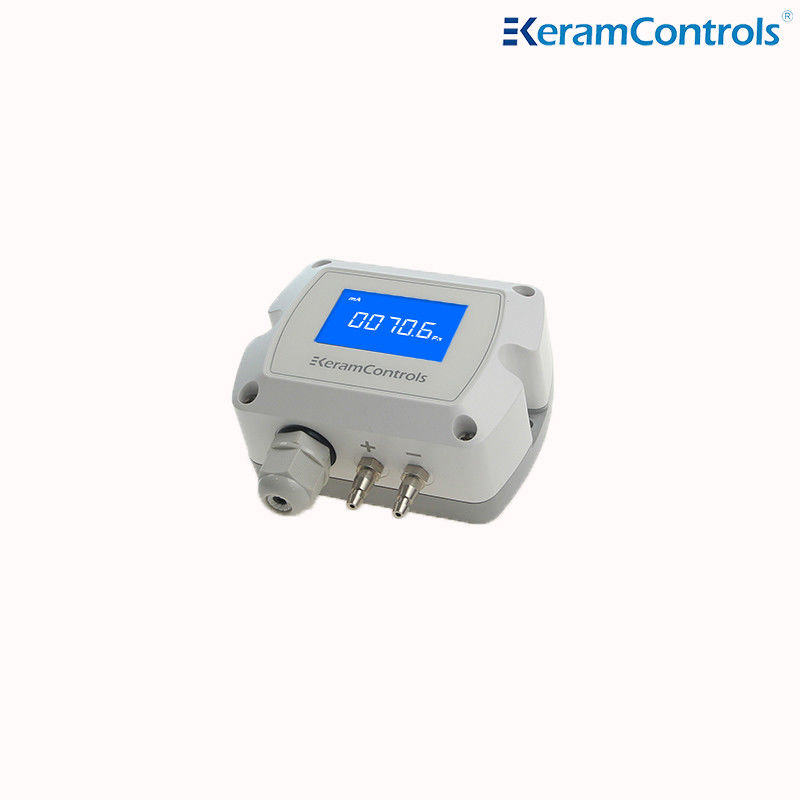

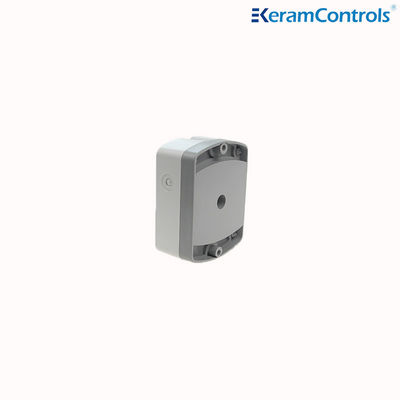

LCD Display Differential Pressure Transmitter Dp Transmitter

LCD Display Differential Pressure Transmitter Dp Transmitter
LCD Display Differential Pressure Transmitter Dp Transmitter
LCD Display Differential Pressure Transmitter Dp Transmitter LCD Display Differential Pressure Transmitter Dp Transmitter LCD Display Differential Pressure Transmitter Dp Transmitter

Large Image :  LCD Display Differential Pressure Transmitter Dp Transmitter

Product Details:
Place of Origin: China
Brand Name: KeramControls
Certification: CE
Model Number: KDP210
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $69-$51/pic
Packaging Details: Carton
Delivery Time: 7-10days
Payment Terms: T/T, L/C
Supply Ability: 2000pic/month

LCD Display Differential Pressure Transmitter Dp Transmitter

Description
Housing Material: PC&ABS,UL94V-0 Display: Blacklight LCD
Tolerated Over Pressure: X15 Accuracy: <±1% FS@-5 To +65℃
Protection: IP65/NEMA4 Output: 4-20mA/0-5V/0-10V/RS-485
Housing Material: PC&ABS,UL94-V0
High Light:

Dp Differential Pressure Transmitter

,

LCD Display Dp Transmitter

,

Backlight LCD Differential Pressure Transmitter



LCD Display dp differential pressure transmitter dp transmitter



Description



Differential pressure transmitter is a sensor for measuring pressure and differential pressure. It is a non-contact measuring instrument. Its working principle is to use the small change of the measured medium to detect the small pressure and differential pressure signal.



Traditional pressure gauges and vacuum gauges can only measure the value of the measured pressure directly; The micro-differential pressure transmitter can accurately measure the small change of the measured pressure or liquid column height with time, so it has high accuracy and stability, and is widely used in the field of industrial automation process control and scientific research.


Feature



  • Ranges from -25/+25Pa to -10000/+10000Pa (according to models)
  • Auto zero manual calibration
  • Voltage, current, digital signal output
  • Standard accuracy <±1% FS
  • IP65 house protection

Application



  • HVAC system
  • Pharmaceutical clean rooms
  • Electronic clean rooms
  • Medical clean rooms
  • Commercial buildings
  • Public transport hub

Technical data



Model KDP210
Measurement Units Pa,mmH2O,inWG,mmHG,KPa,mbar
Accuracy <±1% FS@-5 to +65℃
Response Time 0.5s
Repeat Stability ±0.01 % at FS /Year
Resolution 0.1 Pa; 0.1 mmH2O; 0.01mbar; 0.01mmHG
Media Air and neutral gases
Operating Temperature -20…+70℃
Storage Temperature -40…+60℃
Power Consumption <1.5W
Tolerated over pressure x15
Power Supply 16~30VAC/DC (3wire) / 18~30VDC (2wire)
Output Signal 4-20mA(2wire)
4-20mA(3wire)
0~5V/0~10VDC(3wire)
RS-485
Customized
Auto Zero Manual calibration
Housing Material PC&ABS,UL94V-0
Protection Class IP65/NEMA4
Display Backlight LCD display
Cable Gland M16*1.5

Dimension(mm)



LCD Display Differential Pressure Transmitter Dp Transmitter 0

LCD Display Differential Pressure Transmitter Dp Transmitter 1


Measuring range adjustment



LCD Display Differential Pressure Transmitter Dp Transmitter 2


Output setting(3 wire Model)



LCD Display Differential Pressure Transmitter Dp Transmitter 3

LCD Display Differential Pressure Transmitter Dp Transmitter 4


Manual Zero-point correction



LCD Display Differential Pressure Transmitter Dp Transmitter 5


Ordering guide



KDP210-Range-display-output



Model Ranges Display output
KDP210 -100~+100Pa (1) LCD backlight (D) 4-20mA(2 wire) (E)
-1000~+1000Pa (2)     4-20mA(3 wire) (F)
-2000~+2000Pa (3)     0-5/0-10VDC (3 wire) (G)
-10000~+10000Pa (4)     RS-485 (H)
        Customized



LCD Display Differential Pressure Transmitter Dp Transmitter 6LCD Display Differential Pressure Transmitter Dp Transmitter 7

LCD Display Differential Pressure Transmitter Dp Transmitter 8

LCD Display Differential Pressure Transmitter Dp Transmitter 9
