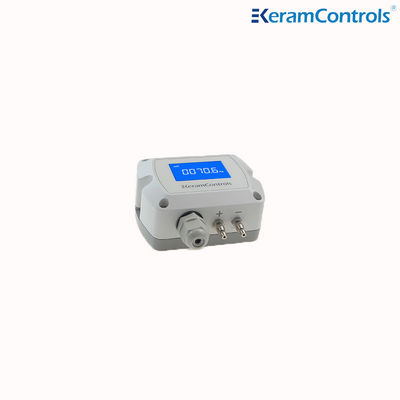

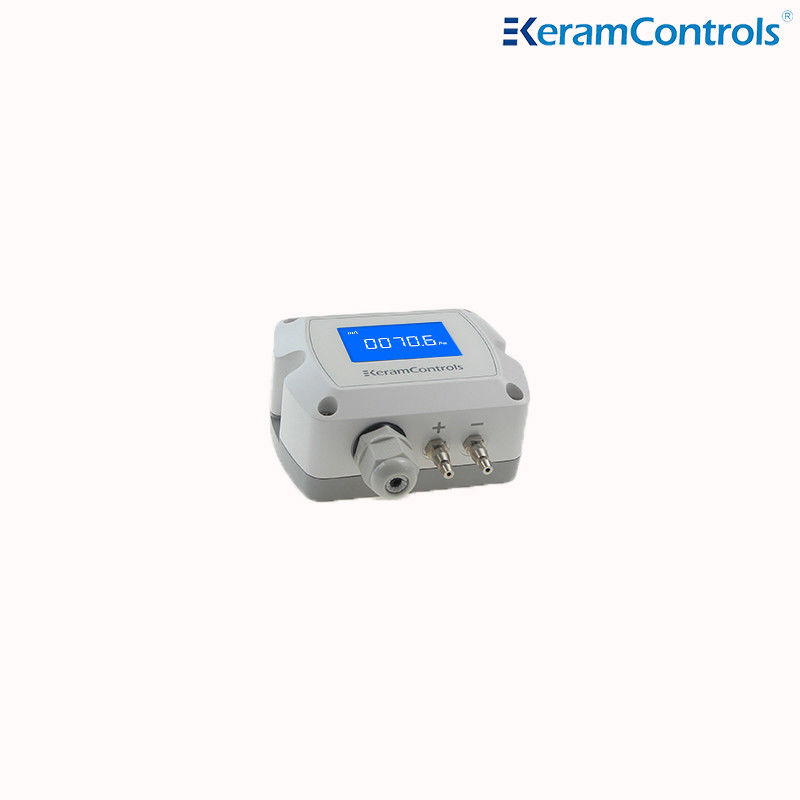

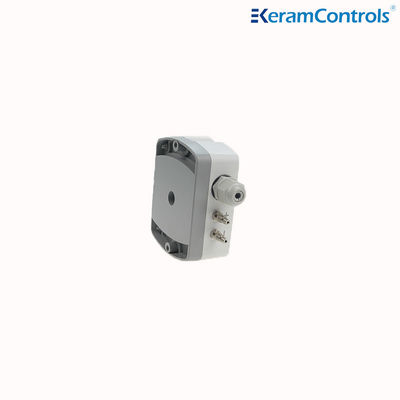

Oem Differential Pressure Transmitter with PC ABS UL94-V0 Housing
| Housing Material: | PC&ABS，UL94V-0 | Display: | Blacklight LCD |
|---|---|---|---|
| Tolerated Over Pressure: | X15 | Accuracy: | <±1% FS@-5 To +65℃ |
| Protection: | IP65/NEMA4 | Output: | 4-20mA/0-5V/0-10V/RS-485 |
| Housing Material: | PC&ABS,UL94-V0 | ||
| Highlight |
Oem Differential Pressure Transmitter,UL94-V0 Differential Pressure Transmitter,LCD DPT Differential Pressure Transmitter |
||
oem pressure transmitter differential pressure transmitter
Description
Micro-pressure differential transmitter is the most commonly used transmitter in industrial practice. It is widely used in various industrial automatic control environments, including oil pipelines, water conservancy and hydropower, railway transportation, intelligent buildings, production automation, aerospace, military, petrochemical, oil wells, electric power, ships, machine tools, pipeline air supply, boiler negative pressure and other industries.
The working principle of the micro-pressure differential transmitter is that the pressure of the medium acts directly on the diaphragm of the sensor, causing the diaphragm to produce a micro-displacement that is proportional to the pressure of the medium, and changing the resistance of the sensor. The electronic circuit is used to detect this change, and convert and output a standard signal corresponding to this pressure.
Feature
- Ranges from -25/+25Pa to -10000/+10000Pa (according to models)
- Auto zero manual calibration
- Voltage, current, digital signal output
- Standard accuracy <±1% FS
- IP65 house protection
- When ≤100Pa,accuracy＜±3%FS±2Pa
Application
- HVAC system
- Pharmaceutical clean rooms
- Electronic clean rooms
- Medical clean rooms
- Commercial buildings
- Public transport hub
Technical data
| Model | KDP210 |
| Measurement Units | Pa,mmH2O,inWG,mmHG,KPa,mbar |
| Accuracy | <±1% FS@-5 to +65℃ |
| Response Time | 0.5s |
| Repeat Stability | ±0.01 % at FS /Year |
| Resolution | 0.1 Pa; 0.1 mmH2O; 0.01mbar; 0.01mmHG |
| Media | Air and neutral gases |
| Operating Temperature | -20…+70℃ |
| Storage Temperature | -40…+60℃ |
| Power Consumption | ＜1.5W |
| Tolerated over pressure | x15 |
| Power Supply | 16~30VAC/DC (3wire) / 18~30VDC (2wire) |
| Output Signal | 4-20mA(2wire) |
| 4-20mA(3wire) | |
| 0~5V/0~10VDC(3wire) | |
| RS-485 | |
| Customized | |
| Auto Zero | Manual calibration |
| Housing Material | PC&ABS,UL94V-0 |
| Protection Class | IP65/NEMA4 |
| Display | Backlight LCD display(4-20mA 2 wire without backlight) |
| Cable Gland | M16*1.5 |
Dimension(mm)
Measuring range adjustment
Output setting(3 wire Model)
Manual Zero-point correction
Ordering guide
KDP210-Range-display-output
| Model | Ranges | Display | output | |||
| KDP210 | -100~+100Pa | (1) | LCD backlight | (D) | 4-20mA(2 wire) | (E) |
| -1000~+1000Pa | (2) | 4-20mA(3 wire) | (F) | |||
| -2000~+2000Pa | (3) | 0-5/0-10VDC (3 wire) | (G) | |||
| -10000~+10000Pa | (4) | RS-485 | (H) | |||
| Customized | ||||||
