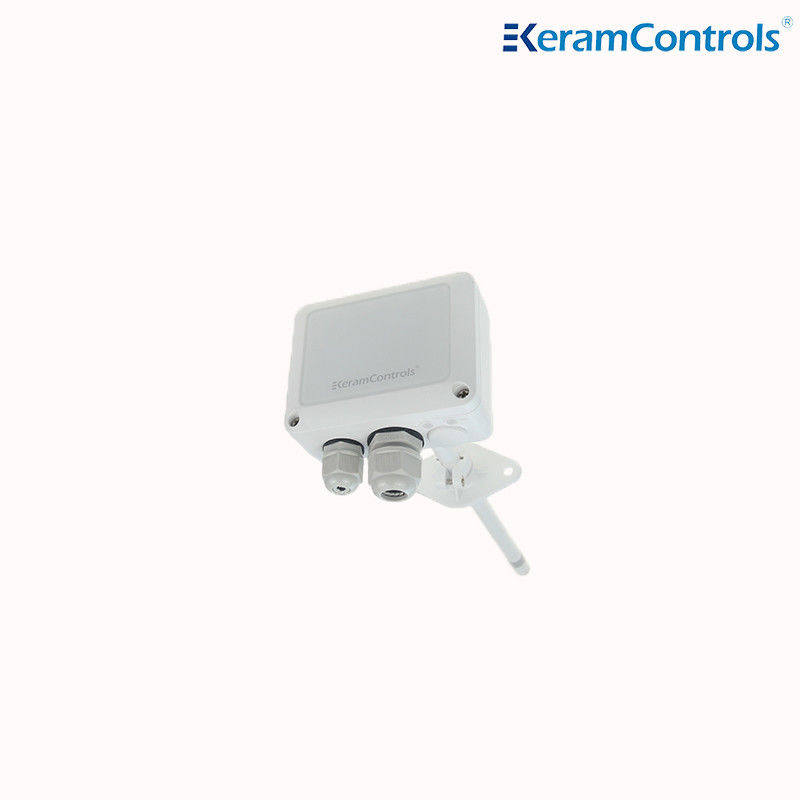

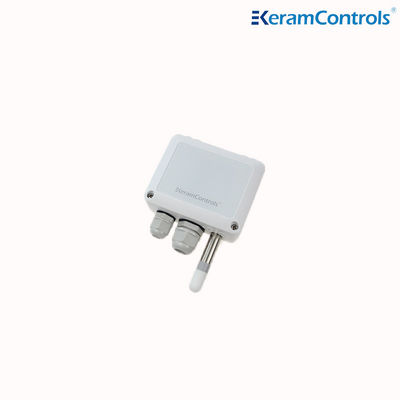

Room Integrated Temperature Humidity Sensor With Smooth Flat Surface
| Operating Humidity: | 0...100%RH | Temperature Range: | DIP Switch |
|---|---|---|---|
| Temperature-accuracy: | ±0.3°C (20-60°C) | Humidity-accuracy: | ±2.5% (0-90% @25°C) / ±3% (90-100% @25°C) |
| Protection: | IP65/NEMA4 | Operating Temp: | -35 ··· +70°C |
| Temperature Rangment: | −35 ··· +80 °C | ||
| Highlight |
Temperature Humidity Sensor 30VDC,RS485 Temperature Humidity Sensor,IP65 Temperature Humidity Sensor |
||
humidity temperature room temperature humidity sensor
Description
The integrated temperature and humidity transmitter uses a digital integrated sensor as the probe and is equipped with a digital processing circuit to convert the temperature and relative humidity in the environment into corresponding standard analog signals, 4-20mA, 0-5V or 0-10V. It has the characteristics of small size, light weight, wide range, etc., and is widely used in various fields that need to measure and control the temperature and humidity in the air, such as meteorology, national defense, scientific research, post and telecommunications, chemical engineering, environmental protection, medicine, hotels, food and other materials storage, HVAC, etc.
Feature
- LCD display
Large size backlight display
- Shell connected by hinge
More convenient wiring and setting
- M16 M20 double cable gland
Cable size φ5…12mm
- Smooth and flflat surface
Prevent the pollution of the shell surface in harsh environment
- IP65/NEMA4
Application
- HVAC system
- Greenhouse
- Food transportation
- Cold storage and refrigeration
- Clean room environment monitoring
Technical Data
| Model | KTH500 |
| Power Supply | 16-30VDC(2wire 4-20mA)/16-30V AC or V DC (0-5V/0-10V/4-20mA/RS-485 ) |
| Output | 4-20mA/0-5V/0-10V/RS-485 |
| Operating Temperature | -30…+70℃ |
| Storage Temperature | -40…+60℃ |
| Operating Humidity | 0...100%RH |
| Temperature Range | DIP Switch |
| Display | Backlight LCD |
| Maximum Wind/Flow Speed | 30m/s |
| Electromagnetic compliance | EN61326-1,Industrial Environment |
| Housing Material | PC&ABS,UL94V-0 |
| Protection Class | IP65/NEMA 4 |
| Cable Gland | M16*1.5 |
| Measurement Performance-Temperature | |
| Measurement Range | -35...+80℃ |
| Accuracy | ±0.3℃(20-60℃) |
| Temperature Dependence | ±0.01℃/℃ |
| Measurement Performance-Humidity | |
| Measurement Range | 0...100%RH |
| Accuracy | ±2%(0-90% @25℃)/±3%(90-100%@25℃) |
| Stability in Typical HVAC Applications | ±0.01RH/Year |
Dimension(mm)
Measuring range adjustment
Ordering guide
KTH500——Output——Installation——Filter
| Model | Output | Installation | Filter | |||
| KTH500 | 4-20mA(2 wire) | (E) | Wall | (W) | PTFE | (P) |
| 4-20mA(3 wire) | (F) | Duct | (D) | Stainless | (S) | |
| 0-5V/0-10VAD(3 wire) | (G) | |||||
| RS-485 | (H) | |||||
