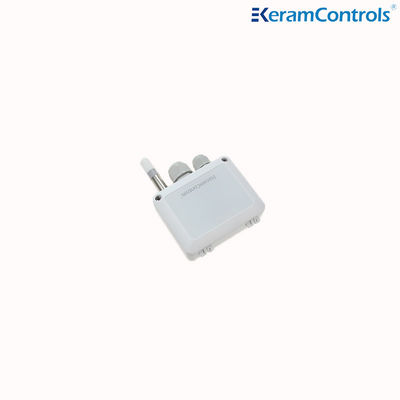

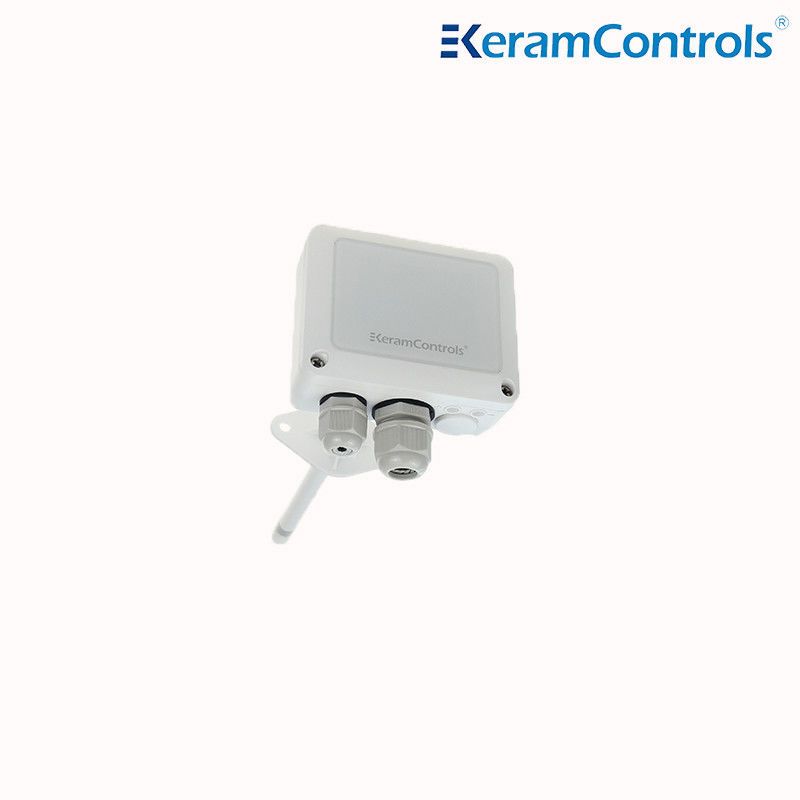

Digital Temperature Humidity Transmitter IP65 NEMA4 for Greenhouse
Place of Origin:
China
Brand Name:
Keramcontrols
Certification:
CE
Model Number:
KTH510
Minimum Order Quantity:
10
Price:
$55-$75/pic
| Operating Humidity: | 0...100%RH | Temperature Range: | DIP Switch |
|---|---|---|---|
| Temperature-accuracy: | ±0.3°C (20-60°C) | Humidity-accuracy: | ±2.5% (0-90% @25°C) / ±3% (90-100% @25°C) |
| Protection: | IP65/NEMA4 | Operating Temp: | -35 ··· +70°C |
| Temperature Rangment: | −35 ··· +80 °C | ||
| Highlight |
Temperature Humidity Transmitter IP65,Temperature Humidity Transmitter NEMA4,DIP Switch Digital Temperature Sensor |
||
Product Description
Temperature humidity transmitter digital temperature humidity sensor
Description
KTH510 is widely used in communication room, warehouse building, automatic control and other places requiring temperature monitoring. The standard industrial interface 4~20mA/0~10V/0~5V analog signal output can be used to access the on-site digital display meter, PLC, frequency converter, industrial control host and other equipment, which is safe, reliable and easy to install.
Feature
- LCD display
Large size backlight display
- Shell connected by hinge
More convenient wiring and setting
- M16 M20 double cable gland
Cable size φ5…12mm
- Smooth and flflat surface
Prevent the pollution of the shell surface in harsh environment
- IP65/NEMA4
Application
- HVAC system
- Greenhouse
- Food transportation
- Cold storage and refrigeration
- Clean room environment monitoring
Technical Data
| Model | KTH500 |
| Power Supply | 16-30VDC(2wire 4-20mA)/16-30V AC or V DC (0-5V/0-10V/4-20mA/RS-485 ) |
| Output | 4-20mA/0-5V/0-10V/RS-485 |
| Operating Temperature | -30…+70℃ |
| Storage Temperature | -40…+60℃ |
| Operating Humidity | 0...100%RH |
| Temperature Range | DIP Switch |
| Display | Backlight LCD |
| Maximum Wind/Flow Speed | 30m/s |
| Electromagnetic compliance | EN61326-1,Industrial Environment |
| Housing Material | PC&ABS,UL94V-0 |
| Protection Class | IP65/NEMA 4 |
| Cable Gland | M16*1.5 |
| Measurement Performance-Temperature | |
| Measurement Range | -35...+80℃ |
| Accuracy | ±0.3℃(20-60℃) |
| Temperature Dependence | ±0.01℃/℃ |
| Measurement Performance-Humidity | |
| Measurement Range | 0...100%RH |
| Accuracy | ±2%(0-90% @25℃)/±3%(90-100%@25℃) |
| Stability in Typical HVAC Applications | ±0.01RH/Year |
Dimension(mm)
Measuring range adjustment
Ordering guide
KTH500——Output——Installation——Filter
| Model | Output | Installation | Filter | |||
| KTH500 | 4-20mA(2 wire) | (E) | Wall | (W) | PTFE | (P) |
| 4-20mA(3 wire) | (F) | Duct | (D) | Stainless | (S) | |
| 0-5V/0-10VAD(3 wire) | (G) | |||||
| RS-485 | (H) | |||||
