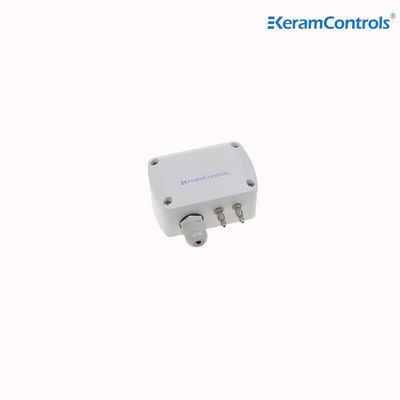

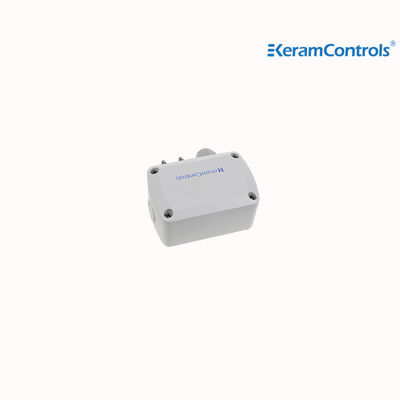

IP65 NEMA4 Dpt Sensor Differential Pressure Sensor Customized

IP65 NEMA4 Dpt Sensor Differential Pressure Sensor Customized
IP65 NEMA4 Dpt Sensor Differential Pressure Sensor Customized
IP65 NEMA4 Dpt Sensor Differential Pressure Sensor Customized IP65 NEMA4 Dpt Sensor Differential Pressure Sensor Customized IP65 NEMA4 Dpt Sensor Differential Pressure Sensor Customized

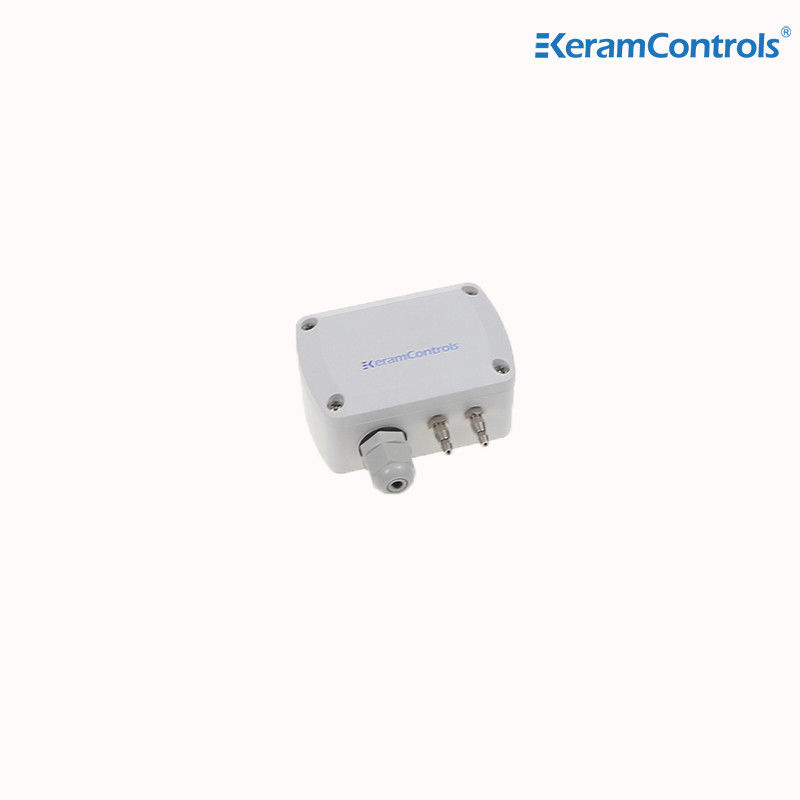

Large Image :  IP65 NEMA4 Dpt Sensor Differential Pressure Sensor Customized

Product Details:
Place of Origin: China
Brand Name: KeramControls
Certification: CE
Model Number: KDP110
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $69-$51/pic
Packaging Details: Carton
Delivery Time: 7-10days
Payment Terms: T/T, L/C
Supply Ability: 2000pic/month

IP65 NEMA4 Dpt Sensor Differential Pressure Sensor Customized

Description
Output Signal: 4-20mA(3wire) Storage Temperature: -40…+60℃
Power Consumption: <1.5W Accuracy: <±1% FS@-5 To +65℃
High Light:

IP65 Dpt Sensor

,

NEMA4 Dpt Sensor

,

Customized Differential Pressure Sensor

dpt sensor differential pressure sensor



Description



The differential pressure transmitter utilizes the piezoresistive effect of the silicon conductor of the differential pressure sensor to realize the conversion of the differential pressure and the electrical signal.

Because the signal output by the Wheatstone bridge on the sensitive chip has a good linear relationship with the differential pressure, the accurate measurement of the measured differential pressure can be realized.

Differential pressure transmitter is widely used in industrial process control, flow measurement, medical instruments, aerodynamic measurement, hydraulic, pneumatic equipment and other fields.

The differential pressure transmitter is mainly used for the measurement of differential pressure, liquid level and flow.

In petroleum and petrochemical industry, differential pressure, liquid level and flow are very important parameters, so differential pressure transmitter can realize local display, remote monitoring, control, alarm and other functions.


Feature



  • Ranges from -25/+25Pa to -10000/+10000Pa (according to models)
  • Auto zero manual calibration
  • Voltage, current, digital signal output
  • Standard accuracy <±1% FS
  • IP65 house protection

Application



  • HVAC system
  • Pharmaceutical clean rooms
  • Electronic clean rooms
  • Medical clean rooms
  • Commercial buildings
  • Public transport hub

Technical data



Model KDP110
Measurement Units Pa,mmH2O,inWG,mmHG,KPa,mbar
Accuracy <±1% FS@-5 to +65℃
Response Time 0.5s
Repeat Stability ±0.01 % at FS /Year
Resolution 0.1 Pa; 0.1 mmH2O; 0.01mbar; 0.01mmHG
Media Air and neutral gases
Operating Temperature -20…+70℃
Storage Temperature -40…+60℃
Power Consumption <1.5W
Tolerated over pressure x15
Power Supply 16~30VAC/DC (3wire) / 18~30VDC (2wire)
Output Signal 4-20mA(2wire)
4-20mA(3wire)
0~5V/0~10VDC(3wire)
RS-485
Customized
Auto Zero Manual calibration
Housing Material PC&ABS,UL94V-0
Protection Class IP65/NEMA4
Cable Gland M16*1.5

Dimension



IP65 NEMA4 Dpt Sensor Differential Pressure Sensor Customized 0IP65 NEMA4 Dpt Sensor Differential Pressure Sensor Customized 1


Measuring range adjustment



IP65 NEMA4 Dpt Sensor Differential Pressure Sensor Customized 2


Output setting(3 wire Model)



IP65 NEMA4 Dpt Sensor Differential Pressure Sensor Customized 3

IP65 NEMA4 Dpt Sensor Differential Pressure Sensor Customized 4


Manual Zero-point correction



IP65 NEMA4 Dpt Sensor Differential Pressure Sensor Customized 5


Ordering guide



KDP110-Range-Output



Model Range Output
KDP110 -100~+100Pa (1) 4-20mA(2 wire) (E)
-1000~+1000Pa (2) 4-20mA(3 wire) (F)
-2000~+2000Pa (3) 0-5/0-10V(3 wire) (G)
-10000~+10000Pa (4) RS-485 (H)
    Customized



IP65 NEMA4 Dpt Sensor Differential Pressure Sensor Customized 6

IP65 NEMA4 Dpt Sensor Differential Pressure Sensor Customized 7
