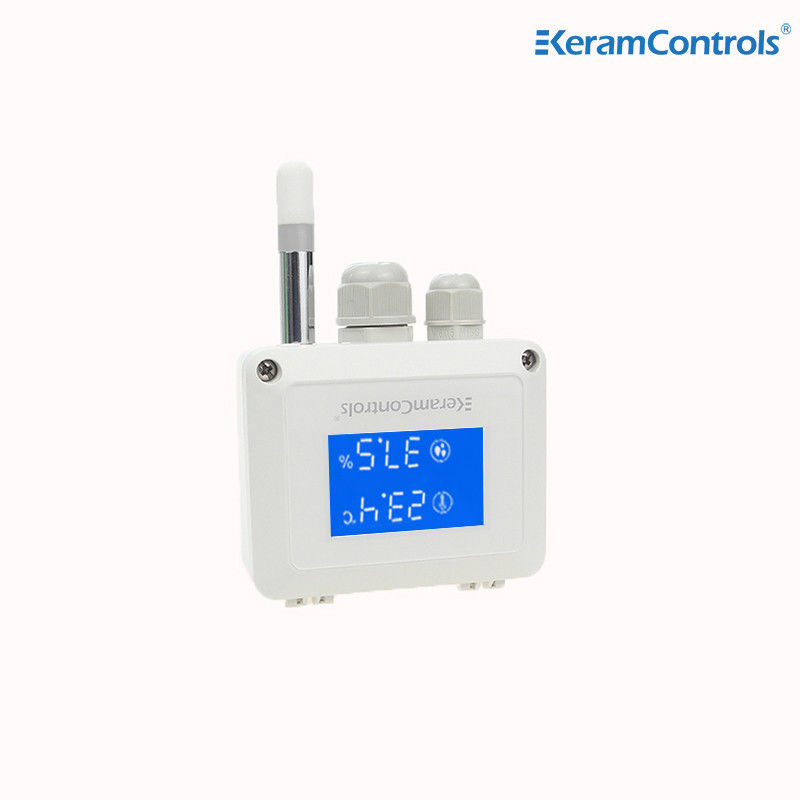

High Temperature Humidity Transmitter IP65 NEMA4 For HVAC System

High Temperature Humidity Transmitter IP65 NEMA4 For HVAC System
High Temperature Humidity Transmitter IP65 NEMA4 For HVAC System
High Temperature Humidity Transmitter IP65 NEMA4 For HVAC System High Temperature Humidity Transmitter IP65 NEMA4 For HVAC System High Temperature Humidity Transmitter IP65 NEMA4 For HVAC System

Large Image :  High Temperature Humidity Transmitter IP65 NEMA4 For HVAC System

Product Details:
Place of Origin: China
Brand Name: Keramcontrols
Certification: CE
Model Number: KTH500
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $55-$75/pic
Packaging Details: Carton
Delivery Time: 7days
Payment Terms: L/C, T/T
Supply Ability: 1000pics/month

High Temperature Humidity Transmitter IP65 NEMA4 For HVAC System

Description
Operating Humidity: 0...100%RH Temperature Range: DIP Switch
Display: Blacklight LCD Temperature Range: −35 ··· +80 °C
Temperature-accuracy: ±0.3°C (20-60°C) Humidity Range: 0 ··· 100 %RH
Humidity-accuracy: ±2% (0-90% @25°C) / ±3% (90-100% @25°C) Output: 4-20mA/0-5V/0-10V/RS-485
Operating Temperature: -35 ··· +70°C
High Light:

Temperature Humidity Transmitter IP65

,

High Temperature Humidity Transmitter NEMA4

,

RS485 Temp Humidity Transmitter



high temperature humidity transmitter



Description



The temperature and humidity sensor uses a digital integrated sensor as the probe and is equipped with a digital processing circuit to convert the temperature and relative humidity in the environment into corresponding standard analog signals, 4-20mA, 0-5V or 0-10V. The temperature and humidity integrated analog sensor can convert the change of temperature and humidity value into the change of current/voltage value at the same time, and can be directly connected with various standard analog input secondary instruments.


Feature



  • LCD display

Large size backlight display

  • Shell connected by hinge

More convenient wiring and setting

  • M16 M20 double cable gland

Cable size φ5…12mm

  • Smooth and flflat surface

Prevent the pollution of the shell surface in harsh environment

  • IP65/NEMA4

Application



  • HVAC system
  • Greenhouse
  • Food transportation
  • Cold storage and refrigeration
  • Clean room environment monitoring

Technical Data



Model KTH500
Power Supply 16-30VDC(2wire 4-20mA)/16-30V AC or V DC (0-5V/0-10V/4-20mA/RS-485 )
Output 4-20mA/0-5V/0-10V/RS-485
Operating Temperature -30…+70℃
Storage Temperature -40…+60℃
Operating Humidity 0...100%RH
Temperature Range DIP Switch
Display Backlight LCD
Maximum Wind/Flow Speed 30m/s
Electromagnetic compliance EN61326-1,Industrial Environment
Housing Material PC&ABS,UL94V-0
Protection Class IP65/NEMA 4
Cable Gland M16*1.5
Measurement Performance-Temperature
Measurement Range -35...+80℃
Accuracy ±0.3℃(20-60℃)
Temperature Dependence ±0.01℃/℃
Measurement Performance-Humidity
Measurement Range 0...100%RH
Accuracy ±2%(0-90% @25℃)/±3%(90-100%@25℃)
Stability in Typical HVAC Applications ±0.01RH/Year

Dimension(mm)



High Temperature Humidity Transmitter IP65 NEMA4 For HVAC System 0High Temperature Humidity Transmitter IP65 NEMA4 For HVAC System 1


Measuring range adjustment



High Temperature Humidity Transmitter IP65 NEMA4 For HVAC System 2


Output setting(3 wire Model)



High Temperature Humidity Transmitter IP65 NEMA4 For HVAC System 3


Ordering guide



KTH500——Output——Installation——Filter



Model Output Installation Filter
KTH500 4-20mA(2 wire) (E) Wall (W) PTFE (P)
4-20mA(3 wire) (F) Duct (D) Stainless (S)
0-5V/0-10VAD(3 wire) (G)
RS-485 (H)



High Temperature Humidity Transmitter IP65 NEMA4 For HVAC System 4

High Temperature Humidity Transmitter IP65 NEMA4 For HVAC System 5

High Temperature Humidity Transmitter IP65 NEMA4 For HVAC System 6
