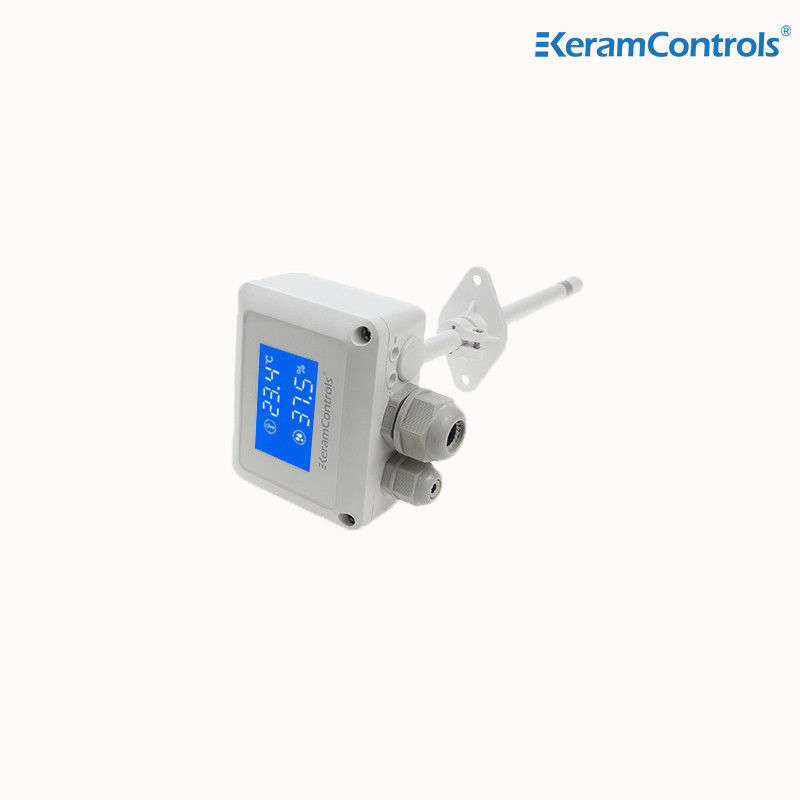

LCD Display Duct Temperature And Humidity Transmitter 4-20mA

LCD Display Duct Temperature And Humidity Transmitter 4-20mA
LCD Display Duct Temperature And Humidity Transmitter 4-20mA
LCD Display Duct Temperature And Humidity Transmitter 4-20mA LCD Display Duct Temperature And Humidity Transmitter 4-20mA LCD Display Duct Temperature And Humidity Transmitter 4-20mA

Large Image :  LCD Display Duct Temperature And Humidity Transmitter 4-20mA

Product Details:
Place of Origin: China
Brand Name: Keramcontrols
Certification: CE
Model Number: KTH500
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $55-$75/pic
Packaging Details: Carton
Delivery Time: 7days
Payment Terms: L/C, T/T
Supply Ability: 1000pics/month

LCD Display Duct Temperature And Humidity Transmitter 4-20mA

Description
Operating Humidity: 0...100%RH Temperature Range: DIP Switch
Display: Blacklight LCD Temperature Range: −35 ··· +80 °C
Temperature-accuracy: ±0.3°C (20-60°C) Humidity Range: 0 ··· 100 %RH
Humidity-accuracy: ±2% (0-90% @25°C) / ±3% (90-100% @25°C) Output: 4-20mA/0-5V/0-10V/RS-485
Operating Temperature: -35 ··· +70°C
High Light:

Duct Temperature And Humidity Transmitter

,

CE Temperature And Humidity Transmitter

,

M20 Temp Humidity Transmitter



4-20mA LCD display duct temperature temperature and humidity transmitter



Description



The humidity sensor is unsealed. In order to protect the accuracy and stability of the measurement, it should be avoided to use in the atmosphere of acid, alkali and organic solvent. Also avoid using in dusty environment. In order to correctly reflect the humidity of the space to be measured, it is also necessary to avoid placing the sensor in a dead corner that is too close to the wall or has no air circulation. If the measured room is too large, multiple sensors should be placed.


Feature



  • LCD display

Large size backlight display

  • Shell connected by hinge

More convenient wiring and setting

  • M16 M20 double cable gland

Cable size φ5…12mm

  • Smooth and flflat surface

Prevent the pollution of the shell surface in harsh environment

  • IP65/NEMA4

Application



  • HVAC system
  • Greenhouse
  • Food transportation
  • Cold storage and refrigeration
  • Clean room environment monitoring

Technical Data



Model KTH500
Power Supply 16-30VDC(2wire 4-20mA)/16-30V AC or V DC (0-5V/0-10V/4-20mA/RS-485 )
Output 4-20mA/0-5V/0-10V/RS-485
Operating Temperature -30…+70℃
Storage Temperature -40…+60℃
Operating Humidity 0...100%RH
Temperature Range DIP Switch
Display Backlight LCD
Maximum Wind/Flow Speed 30m/s
Electromagnetic compliance EN61326-1,Industrial Environment
Housing Material PC&ABS,UL94V-0
Protection Class IP65/NEMA 4
Cable Gland M16*1.5
Measurement Performance-Temperature
Measurement Range -35...+80℃
Accuracy ±0.3℃(20-60℃)
Temperature Dependence ±0.01℃/℃
Measurement Performance-Humidity
Measurement Range 0...100%RH
Accuracy ±2%(0-90% @25℃)/±3%(90-100%@25℃)
Stability in Typical HVAC Applications ±0.01RH/Year

Dimension(mm)



LCD Display Duct Temperature And Humidity Transmitter 4-20mA 0LCD Display Duct Temperature And Humidity Transmitter 4-20mA 1


Measuring range adjustment



LCD Display Duct Temperature And Humidity Transmitter 4-20mA 2


Output setting(3 wire Model)



LCD Display Duct Temperature And Humidity Transmitter 4-20mA 3


Ordering guide



KTH500——Output——Installation——Filter



Model Output Installation Filter
KTH500 4-20mA(2 wire) (E) Wall (W) PTFE (P)
4-20mA(3 wire) (F) Duct (D) Stainless (S)
0-5V/0-10VAD(3 wire) (G)
RS-485 (H)



LCD Display Duct Temperature And Humidity Transmitter 4-20mA 4

LCD Display Duct Temperature And Humidity Transmitter 4-20mA 5

LCD Display Duct Temperature And Humidity Transmitter 4-20mA 6
