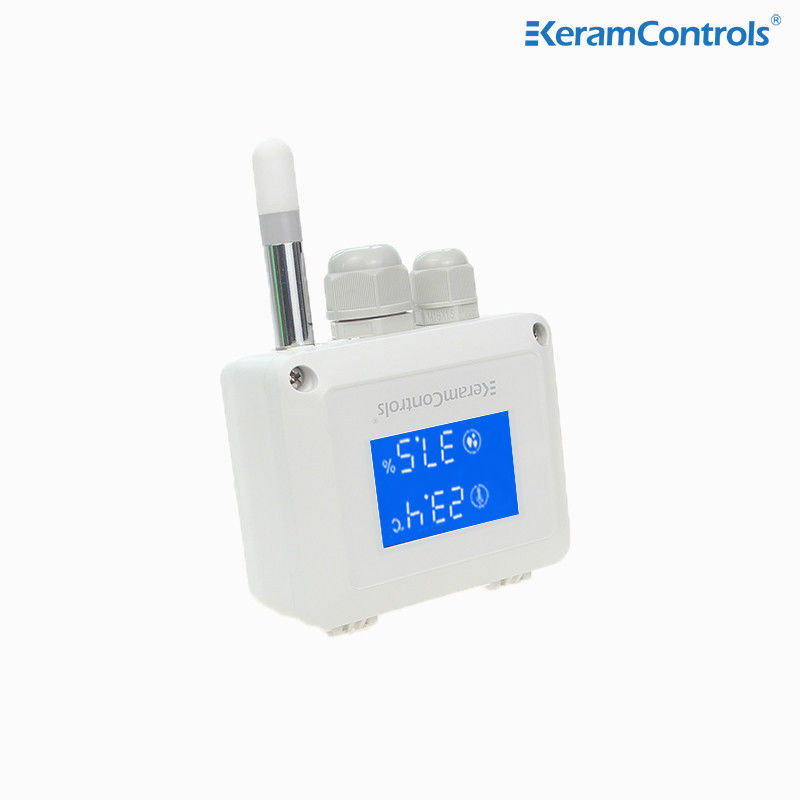

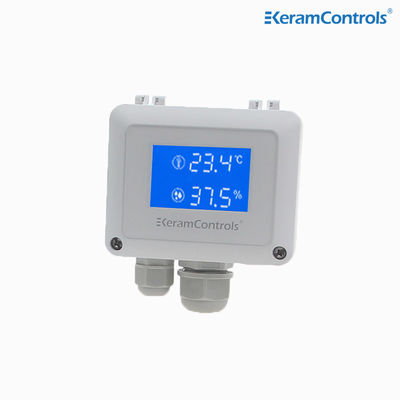

Replaceable Dwyer Temp Humidity Sensor WIth Blacklight LCD

Replaceable Dwyer Temp Humidity Sensor WIth Blacklight LCD
Replaceable Dwyer Temp Humidity Sensor WIth Blacklight LCD
Replaceable Dwyer Temp Humidity Sensor WIth Blacklight LCD Replaceable Dwyer Temp Humidity Sensor WIth Blacklight LCD Replaceable Dwyer Temp Humidity Sensor WIth Blacklight LCD

Large Image :  Replaceable Dwyer Temp Humidity Sensor WIth Blacklight LCD

Product Details:
Place of Origin: China
Brand Name: Keramcontrols
Certification: CE
Model Number: KTH500
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $55-$75/pic
Packaging Details: Carton
Delivery Time: 7days
Payment Terms: L/C, T/T
Supply Ability: 1000pics/month

Replaceable Dwyer Temp Humidity Sensor WIth Blacklight LCD

Description
Operating Humidity: 0...100%RH Temperature Range: DIP Switch
Display: Blacklight LCD Temperature Range: −35 ··· +80 °C
Temperature-accuracy: ±0.3°C (20-60°C) Humidity Range: 0 ··· 100 %RH
Humidity-accuracy: ±2% (0-90% @25°C) / ±3% (90-100% @25°C) Output: 4-20mA/0-5V/0-10V/RS-485
Operating Temperature: -35 ··· +70°C
High Light:

Dwyer Temp Humidity Sensor

,

DIP Switch Temp Humidity Sensor

,

Backlight LCD Temp Humidity Transmitter



Replaceable dwyer temp humidity sensor



Description



The KTH500 is made of ABS&PC composite materials, which can adapt to different working environments, extend the service life of the equipment, and protect the internal components well. Its output modes include current and voltage modes, as well as RS-485 output mode, which can meet the customer's use needs to the maximum extent.


Feature



  • LCD display

Large size backlight display

  • Shell connected by hinge

More convenient wiring and setting

  • M16 M20 double cable gland

Cable size φ5…12mm

  • Smooth and flflat surface

Prevent the pollution of the shell surface in harsh environment

  • IP65/NEMA4

Application



  • HVAC system
  • Greenhouse
  • Food transportation
  • Cold storage and refrigeration
  • Clean room environment monitoring

Technical Data



Model KTH500
Power Supply 16-30VDC(2wire 4-20mA)/16-30V AC or V DC (0-5V/0-10V/4-20mA/RS-485 )
Output 4-20mA/0-5V/0-10V/RS-485
Operating Temperature -30…+70℃
Storage Temperature -40…+60℃
Operating Humidity 0...100%RH
Temperature Range DIP Switch
Display Backlight LCD
Maximum Wind/Flow Speed 30m/s
Electromagnetic compliance EN61326-1,Industrial Environment
Housing Material PC&ABS,UL94V-0
Protection Class IP65/NEMA 4
Cable Gland M16*1.5
Measurement Performance-Temperature
Measurement Range -35...+80℃
Accuracy ±0.3℃(20-60℃)
Temperature Dependence ±0.01℃/℃
Measurement Performance-Humidity
Measurement Range 0...100%RH
Accuracy ±2%(0-90% @25℃)/±3%(90-100%@25℃)
Stability in Typical HVAC Applications ±0.01RH/Year

Dimension(mm)



Replaceable Dwyer Temp Humidity Sensor WIth Blacklight LCD 0Replaceable Dwyer Temp Humidity Sensor WIth Blacklight LCD 1


Measuring range adjustment



Replaceable Dwyer Temp Humidity Sensor WIth Blacklight LCD 2


Output setting(3 wire Model)



Replaceable Dwyer Temp Humidity Sensor WIth Blacklight LCD 3


Ordering guide



KTH500——Output——Installation——Filter



Model Output Installation Filter
KTH500 4-20mA(2 wire) (E) Wall (W) PTFE (P)
4-20mA(3 wire) (F) Duct (D) Stainless (S)
0-5V/0-10VAD(3 wire) (G)
RS-485 (H)



Replaceable Dwyer Temp Humidity Sensor WIth Blacklight LCD 4

Replaceable Dwyer Temp Humidity Sensor WIth Blacklight LCD 5

Replaceable Dwyer Temp Humidity Sensor WIth Blacklight LCD 6
