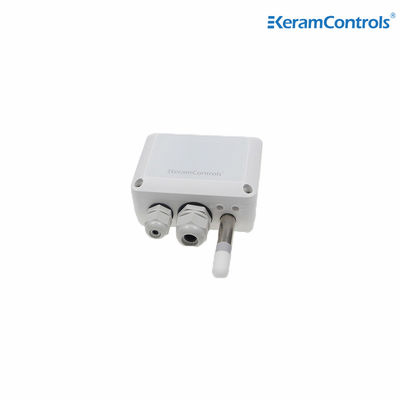

4-20mA High Temperature Humidity Transmitter Smooth Flat Surface

4-20mA High Temperature Humidity Transmitter Smooth Flat Surface
4-20mA High Temperature Humidity Transmitter Smooth Flat Surface
4-20mA High Temperature Humidity Transmitter Smooth Flat Surface 4-20mA High Temperature Humidity Transmitter Smooth Flat Surface 4-20mA High Temperature Humidity Transmitter Smooth Flat Surface

Large Image :  4-20mA High Temperature Humidity Transmitter Smooth Flat Surface

Product Details:
Place of Origin: China
Brand Name: Keramcontrols
Certification: CE
Model Number: KTH500
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $55-$75/pic
Packaging Details: Carton
Delivery Time: 7days
Payment Terms: L/C, T/T
Supply Ability: 1000pics/month

4-20mA High Temperature Humidity Transmitter Smooth Flat Surface

Description
Operating Humidity: 0...100%RH Temperature Rangment: −35 ··· +80 °C
Temperature Range: DIP Switch Temperature-accuracy: ±0.3°C (20-60°C)
Humidity-accuracy: ±2.5% (0-90% @25°C) / ±3% (90-100% @25°C) Protection: IP65/NEMA4
Operating Temp: -35 ··· +70°C
High Light:

20mA High Temperature Humidity Transmitter

,

Smooth Temperature Humidity Transmitter

,

DIP Switch Temp Humidity Transmitter



4-20mA high temperature humidity transmitter



Description



KTH510 temperature and humidity transmitter is a type of transmitter without display, which can meet some customers who do not need display. Its high accuracy, high temperature resistance, and IP65 protection level enable it to be stably used in relatively harsh environments. At the same time, its special housing material allows for long service life.


Feature



  • LCD display

Large size backlight display

  • Shell connected by hinge

More convenient wiring and setting

  • M16 M20 double cable gland

Cable size φ5…12mm

  • Smooth and flflat surface

Prevent the pollution of the shell surface in harsh environment

  • IP65/NEMA4

Application



  • HVAC system
  • Greenhouse
  • Food transportation
  • Cold storage and refrigeration
  • Clean room environment monitoring

Technical Data



Model KTH500
Power Supply 16-30VDC(2wire 4-20mA)/16-30V AC or V DC (0-5V/0-10V/4-20mA/RS-485 )
Output 4-20mA/0-5V/0-10V/RS-485
Operating Temperature -30…+70℃
Storage Temperature -40…+60℃
Operating Humidity 0...100%RH
Temperature Range DIP Switch
Display Backlight LCD
Maximum Wind/Flow Speed 30m/s
Electromagnetic compliance EN61326-1,Industrial Environment
Housing Material PC&ABS,UL94V-0
Protection Class IP65/NEMA 4
Cable Gland M16*1.5
Measurement Performance-Temperature
Measurement Range -35...+80℃
Accuracy ±0.3℃(20-60℃)
Temperature Dependence ±0.01℃/℃
Measurement Performance-Humidity
Measurement Range 0...100%RH
Accuracy ±2%(0-90% @25℃)/±3%(90-100%@25℃)
Stability in Typical HVAC Applications ±0.01RH/Year

Dimension(mm)



4-20mA High Temperature Humidity Transmitter Smooth Flat Surface 04-20mA High Temperature Humidity Transmitter Smooth Flat Surface 1


Measuring range adjustment



4-20mA High Temperature Humidity Transmitter Smooth Flat Surface 2


Output setting(3 wire Model)



4-20mA High Temperature Humidity Transmitter Smooth Flat Surface 3


Ordering guide



KTH500——Output——Installation——Filter



Model Output Installation Filter
KTH500 4-20mA(2 wire) (E) Wall (W) PTFE (P)
4-20mA(3 wire) (F) Duct (D) Stainless (S)
0-5V/0-10VAD(3 wire) (G)
RS-485 (H)



4-20mA High Temperature Humidity Transmitter Smooth Flat Surface 4

4-20mA High Temperature Humidity Transmitter Smooth Flat Surface 54-20mA High Temperature Humidity Transmitter Smooth Flat Surface 6
