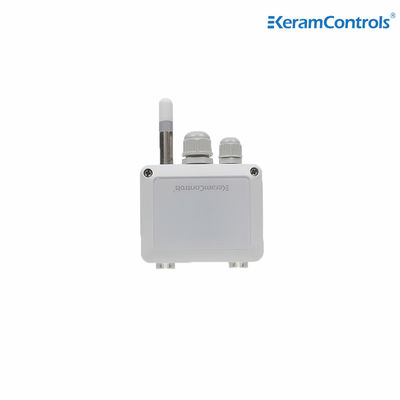

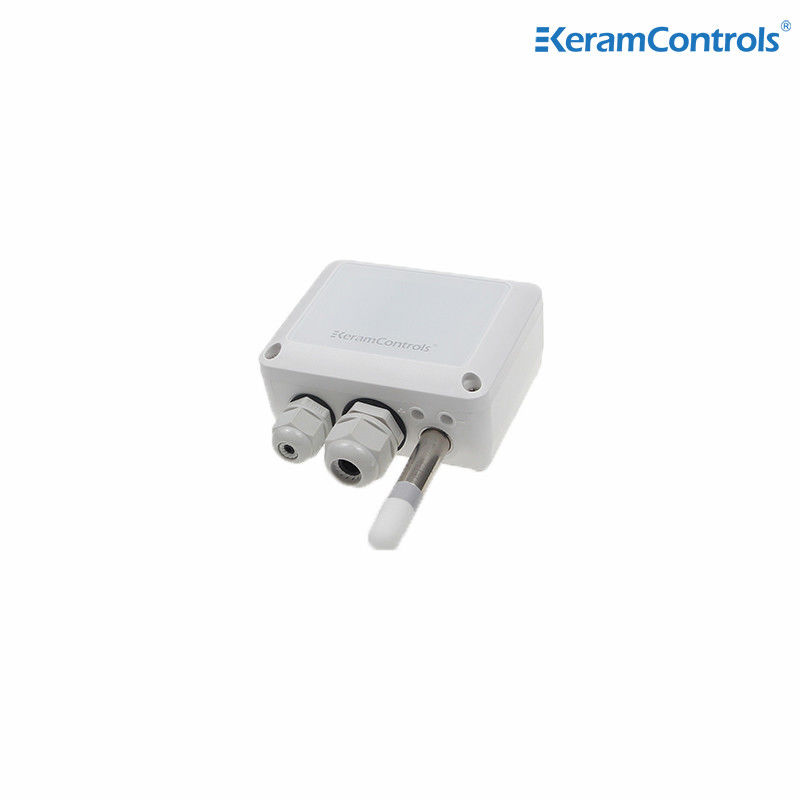

Replaceable Dwyer Temp Humidity Sensor IP65 NEMA4
Place of Origin:
China
Brand Name:
Keramcontrols
Certification:
CE
Model Number:
KTH510
Minimum Order Quantity:
10
Price:
$55-$75/pic
| Operating Humidity: | 0...100%RH | Temperature Rangment: | −35 ··· +80 °C |
|---|---|---|---|
| Temperature Range: | DIP Switch | Temperature-accuracy: | ±0.3°C (20-60°C) |
| Humidity-accuracy: | ±2.5% (0-90% @25°C) / ±3% (90-100% @25°C) | Protection: | IP65/NEMA4 |
| Operating Temp: | -35 ··· +70°C | ||
| Highlight |
Replaceable Dwyer Temp Humidity Sensor,NEMA4 Temp Humidity Sensor,Dwyer Temperature Humidity Transmitter |
||
Product Description
Replaceable dwyer temp humidity sensor
Description
The KTH510 temperature and humidity transmitter is a device with high accuracy and stable performance. Its warranty period is one year. Customers can communicate any problems they find during use. We have professional technology to solve some product technical problems for customers.Multiple output modes are self adjustable (4-20mA, 0-5V, 0-10V, RS485), greatly reducing customer usage costs.
Feature
- LCD display
Large size backlight display
- Shell connected by hinge
More convenient wiring and setting
- M16 M20 double cable gland
Cable size φ5…12mm
- Smooth and flflat surface
Prevent the pollution of the shell surface in harsh environment
- IP65/NEMA4
Application
- HVAC system
- Greenhouse
- Food transportation
- Cold storage and refrigeration
- Clean room environment monitoring
Technical Data
| Model | KTH500 |
| Power Supply | 16-30VDC(2wire 4-20mA)/16-30V AC or V DC (0-5V/0-10V/4-20mA/RS-485 ) |
| Output | 4-20mA/0-5V/0-10V/RS-485 |
| Operating Temperature | -30…+70℃ |
| Storage Temperature | -40…+60℃ |
| Operating Humidity | 0...100%RH |
| Temperature Range | DIP Switch |
| Display | Backlight LCD |
| Maximum Wind/Flow Speed | 30m/s |
| Electromagnetic compliance | EN61326-1,Industrial Environment |
| Housing Material | PC&ABS,UL94V-0 |
| Protection Class | IP65/NEMA 4 |
| Cable Gland | M16*1.5 |
| Measurement Performance-Temperature | |
| Measurement Range | -35...+80℃ |
| Accuracy | ±0.3℃(20-60℃) |
| Temperature Dependence | ±0.01℃/℃ |
| Measurement Performance-Humidity | |
| Measurement Range | 0...100%RH |
| Accuracy | ±2%(0-90% @25℃)/±3%(90-100%@25℃) |
| Stability in Typical HVAC Applications | ±0.01RH/Year |
Dimension(mm)
Measuring range adjustment
Ordering guide
KTH500——Output——Installation——Filter
| Model | Output | Installation | Filter | |||
| KTH500 | 4-20mA(2 wire) | (E) | Wall | (W) | PTFE | (P) |
| 4-20mA(3 wire) | (F) | Duct | (D) | Stainless | (S) | |
| 0-5V/0-10VAD(3 wire) | (G) | |||||
| RS-485 | (H) | |||||
