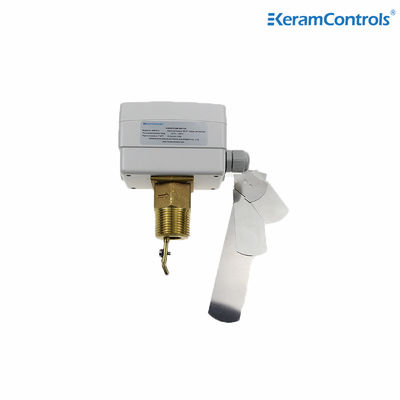

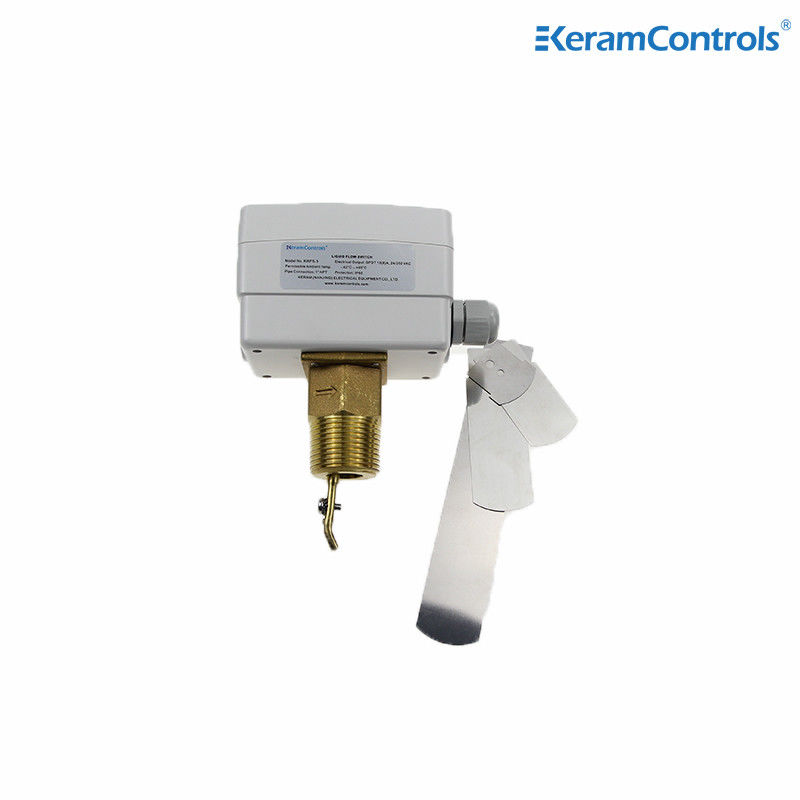

SPDT Water Flow Control Switch Water Pump Flow Sensor

Description
Type Of Operation: On/Off,single-stage,micro Switch Output: SPDT 15(8A) 24/250VAC
Flow Rates: See Flow Rate Table Housing Protection: IP65
High Light:

SPDT Water Pump Flow Sensor

,

Water Flow Control Switch 250VAC

,

Water Flow Control Switch IP65

Water flow control switch water pump flow sensor





Description



KWFS water flow switch is a flow switch made of composite material housing, with a protection level of IP65, which can meet relatively harsh operating environments, while ensuring its stability during operation and increasing its service life, thereby reducing customer usage costs.

The working principle is that the target type (baffle type) flow switch is used to detect one-way or two-way flow of air, oil, and water. There should be no entangled debris in the medium. When the fluid flows through the pipe, the baffle deflects. By adjusting the adjusting bolt, the single pole double throw microswitch operates at the set flow rate and outputs a switching signal; During bidirectional detection, the baffle offset pushes the magnetic module upward, driving the switch module to act. Used to detect unidirectional flow of air and water, and there should be no entangled debris in the water. When the fluid flows through the pipe in the indicated direction, the baffle deflects. By adjusting the adjusting bolt, the single pole double throw microswitch operates at the set flow rate and outputs a switching signal. Large set flow range and convenient adjustment are widely used for measuring water, gas, oil, and other media.



Application


Control and monitor liquid flow of boilers, pumps, etc., of heating, cooling, and air conditioning equipment.


Features


● Flow control of water and normal media
● Renovated SPDT micro switch ensures the reliable switch function
●15(8A)250VAC switch rating
● IP65, class I enclosure
● Set point adjustable
● Stainless steel paddle
● Brass material
● Max. liquid temp 120℃
● Max working pressure 20Ba


Specifications



Type of operation On/Off,single-stage,micro switch
Output SPDT 15(8A) 24/250VAC
Flow rates See flow rate table
Flow rate setting adjustment Internal screw
Sensing element Paddle
Liquid applications Hot, chilled, well, pool and sea water,Brine or ethylene glycol
Parts material in contact with fluid Brass
Paddle material Stainless steel
Liquid temperature -20℃~120℃
Permissible ambient temperature -40℃~85℃
Permissible ambient humidity 10…90% RH, non-condensing
Cable entry M18 Fitting
Housing Fire Resistance ABS or PC
Protection IP65
Color White
Weight 1.0Kg

Types of Model

Model Connection
KWFS-1 1/2" -14 NPT
KWFS-2 3/4" -14 NPT
KWFS-3 1" -11½ NPT

Liquid Flow Rate Table



Line Pipe Size(in.) 1 1-¼ 1-½ 2 2-¼ 3 4 4Z 5 5Z 6 6Z 8 8Z
Min.flow

Flow Increase
&②Connected

4.2
(1.0)

5.8
(1.3)

7.5
(1.7)

13.7
(3.1)

17.6
(4.0)

27.5
(6.2)

64..7
(14.7)

35.2
(8.0)

125
(28.4)

57.01
(12.9)

190.0
(43.1)

74.0
(16.8)

374.7
(85.1)

204.7
(46.5)

Flow Decrease
&③Connected

2.5
(0.6)

3.7
(0.8)

5.0
(1.1)

19.7
(2.2)

11.9
(2.7)

19
(4.3)

50.1
(11.4)

26.9
(6.1)

101.1
(22.9)

41.0
(9.3)

158.0
(35.9)

54.0
(12.3)

319.7
(72.6)

170.0
(3806)

Max.flow

Flow Increase
&②Connected

9.2
(2.1)

13.3
(3.0)

17.6
(4.0)

26.9
(6.1)

30.8
(7.0)

50.2
(11.4)

127.6
(29.0)

81.0
(18.4)

245.0
(55.6)

118.0
(26.8)

374.7
(85.1)

144.0
(32.7)

759.5
(172.5)

415.0
(94.2)

Flow Decrease
&③Connected

8.1
(2.0)

12.5
(2.8)

16.3
(3.7)

25.1
(5.7)

28.6
(6.5)

47.1
(10.7)

122.0
(27.7)

76.2
(17.3)

234.7
(53.3)

111.0
(25.2)

359.7
(81.7)

134.7
(30.6)

729.6
(165.7)

400.6
(90.8)


Note:
①For flow rates with suffix "Z", the 6 inch paddle must be installed.
②The flow rate unit of the above table is GPM (m /h)




Electrical Wiring


 SPDT Water Flow Control Switch Water Pump Flow Sensor 0



Installation


The flow switch can be installed in every position far from elbows or throttlings, with arrow on flow direction. If pipe is vertical, recalibrate range to balance paddle weight. If the device is downwards mounted, take care to slags and apply it in a straight pipe that is far from filters,valves,etc.,with length at least 5 times the diameter of pipe upstream and downstream the unit.


Note:
The flow switch is factory calibrated at its minimum sensitivity.To increase the set valve,turn the adjustment screw clockwise.The cut-out valve must be ≥the minimum flow necessary to guarantee the protection of the plant.




Dimensions (mm)
 SPDT Water Flow Control Switch Water Pump Flow Sensor 1

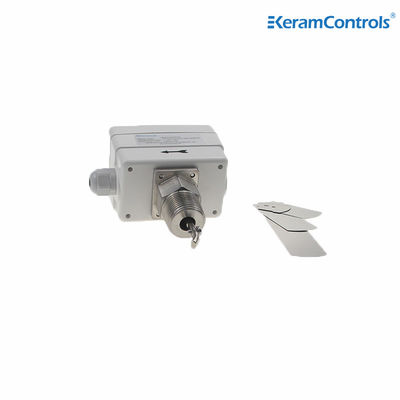

Paddles

SPDT Water Flow Control Switch Water Pump Flow Sensor 2



Install Paddle
Pipe NO.
1" 1
11/4" 1
11/2" 1
2" 1,2
21/2" 1,2
3" 1,2,3
4" 1,2,3
4"Z 1,2,3,4
5" 1,2,3
5"Z 1,2,3,4
6" 1,2,3
6"Z 1,2,3,4
8" 1,2,3
8"Z 1,2,3,4



 SPDT Water Flow Control Switch Water Pump Flow Sensor 3



SPDT Water Flow Control Switch Water Pump Flow Sensor 4
