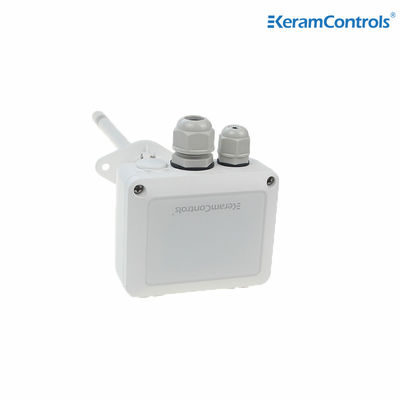

HVAC No Display Temperature And Humidity Transmitter NEMA4

HVAC No Display Temperature And Humidity Transmitter NEMA4
HVAC No Display Temperature And Humidity Transmitter NEMA4
HVAC No Display Temperature And Humidity Transmitter NEMA4 HVAC No Display Temperature And Humidity Transmitter NEMA4 HVAC No Display Temperature And Humidity Transmitter NEMA4

Large Image :  HVAC No Display Temperature And Humidity Transmitter NEMA4

Product Details:
Place of Origin: China
Brand Name: Keramcontrols
Certification: CE
Model Number: KTH500
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $55-$75/pic
Packaging Details: Carton
Delivery Time: 7days
Payment Terms: L/C, T/T
Supply Ability: 1000pics/month

HVAC No Display Temperature And Humidity Transmitter NEMA4

Description
Operating Humidity: 0...100%RH Temperature Rangment: −35 ··· +80 °C
Temperature Range: DIP Switch Temperature-accuracy: ±0.3°C (20-60°C)
Humidity-accuracy: ±2.5% (0-90% @25°C) / ±3% (90-100% @25°C) Protection: IP65/NEMA4
Operating Temp: -35 ··· +70°C
High Light:

NEMA4 HVAC Temperature Humidity Transmitter

,

100%RH Temperature Humidity Transmitter

,

Temperature And Humidity Transmitter IP65



HVAC no display temperature and humidity transmitter



Description



The KTH510 temperature and humidity transmitter is a high-precision transmitter that can meet the needs of most customers. Its new design concept makes it easy to install and disassemble, which can effectively reduce installation costs. At the same time, its adjustable temperature range allows customers to have more choices, and its adjustable output mode greatly reduces customer use costs.


Feature



  • LCD display

Large size backlight display

  • Shell connected by hinge

More convenient wiring and setting

  • M16 M20 double cable gland

Cable size φ5…12mm

  • Smooth and flflat surface

Prevent the pollution of the shell surface in harsh environment

  • IP65/NEMA4

Application



  • HVAC system
  • Greenhouse
  • Food transportation
  • Cold storage and refrigeration
  • Clean room environment monitoring

Technical Data



Model KTH500
Power Supply 16-30VDC(2wire 4-20mA)/16-30V AC or V DC (0-5V/0-10V/4-20mA/RS-485 )
Output 4-20mA/0-5V/0-10V/RS-485
Operating Temperature -30…+70℃
Storage Temperature -40…+60℃
Operating Humidity 0...100%RH
Temperature Range DIP Switch
Display Backlight LCD
Maximum Wind/Flow Speed 30m/s
Electromagnetic compliance EN61326-1,Industrial Environment
Housing Material PC&ABS,UL94V-0
Protection Class IP65/NEMA 4
Cable Gland M16*1.5
Measurement Performance-Temperature
Measurement Range -35...+80℃
Accuracy ±0.3℃(20-60℃)
Temperature Dependence ±0.01℃/℃
Measurement Performance-Humidity
Measurement Range 0...100%RH
Accuracy ±2%(0-90% @25℃)/±3%(90-100%@25℃)
Stability in Typical HVAC Applications ±0.01RH/Year

Dimension(mm)



HVAC No Display Temperature And Humidity Transmitter NEMA4 0HVAC No Display Temperature And Humidity Transmitter NEMA4 1


Measuring range adjustment



HVAC No Display Temperature And Humidity Transmitter NEMA4 2


Output setting(3 wire Model)



HVAC No Display Temperature And Humidity Transmitter NEMA4 3


Ordering guide



KTH500——Output——Installation——Filter



Model Output Installation Filter
KTH500 4-20mA(2 wire) (E) Wall (W) PTFE (P)
4-20mA(3 wire) (F) Duct (D) Stainless (S)
0-5V/0-10VAD(3 wire) (G)
RS-485 (H)



HVAC No Display Temperature And Humidity Transmitter NEMA4 4

HVAC No Display Temperature And Humidity Transmitter NEMA4 5HVAC No Display Temperature And Humidity Transmitter NEMA4 6
