Product Details:
|
| Operating Humidity: | 0...100%RH | Temperature Rangment: | −35 ··· +80 °C |
|---|---|---|---|
| Temperature Range: | DIP Switch | Temperature-accuracy: | ±0.3°C (20-60°C) |
| Humidity-accuracy: | ±2.5% (0-90% @25°C) / ±3% (90-100% @25°C) | Protection: | IP65/NEMA4 |
| Operating Temp: | -35 ··· +70°C | ||
| High Light: | KTH500 Temperature And Humidity Transmitter,LCD Temperature And Humidity Transmitter,Digital Temperature Humidity Sensor IP65 |
||

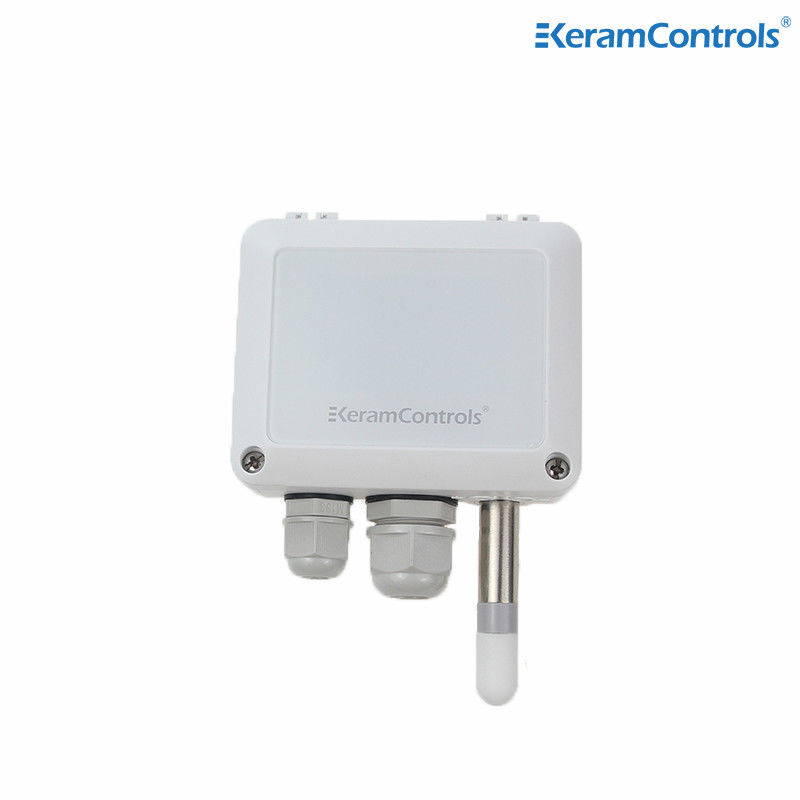

The KTH510 temperature and humidity transmitter adopts a new design concept, aiming to reduce customer installation costs and usage costs. It uses a dial switch to switch the temperature range and output mode. By opening the hinged housing, customers can easily and quickly adjust the required temperature range and output mode, greatly reducing customer usage costs.
Large size backlight display
More convenient wiring and setting
Cable size φ5…12mm
Prevent the pollution of the shell surface in harsh environment
| Model | KTH500 |
| Power Supply | 16-30VDC(2wire 4-20mA)/16-30V AC or V DC (0-5V/0-10V/4-20mA/RS-485 ) |
| Output | 4-20mA/0-5V/0-10V/RS-485 |
| Operating Temperature | -30…+70℃ |
| Storage Temperature | -40…+60℃ |
| Operating Humidity | 0...100%RH |
| Temperature Range | DIP Switch |
| Display | Backlight LCD |
| Maximum Wind/Flow Speed | 30m/s |
| Electromagnetic compliance | EN61326-1,Industrial Environment |
| Housing Material | PC&ABS,UL94V-0 |
| Protection Class | IP65/NEMA 4 |
| Cable Gland | M16*1.5 |
| Measurement Performance-Temperature | |
| Measurement Range | -35...+80℃ |
| Accuracy | ±0.3℃(20-60℃) |
| Temperature Dependence | ±0.01℃/℃ |
| Measurement Performance-Humidity | |
| Measurement Range | 0...100%RH |
| Accuracy | ±2%(0-90% @25℃)/±3%(90-100%@25℃) |
| Stability in Typical HVAC Applications | ±0.01RH/Year |
KTH500——Output——Installation——Filter
| Model | Output | Installation | Filter | |||
| KTH500 | 4-20mA(2 wire) | (E) | Wall | (W) | PTFE | (P) |

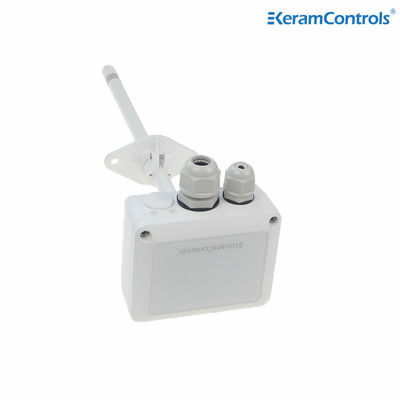

| 4-20mA(3 wire) | (F) | Duct | (D) | Stainless | (S) | |
| 0-5V/0-10VAD(3 wire) | (G) | |||||
| RS-485 | (H) | |||||
