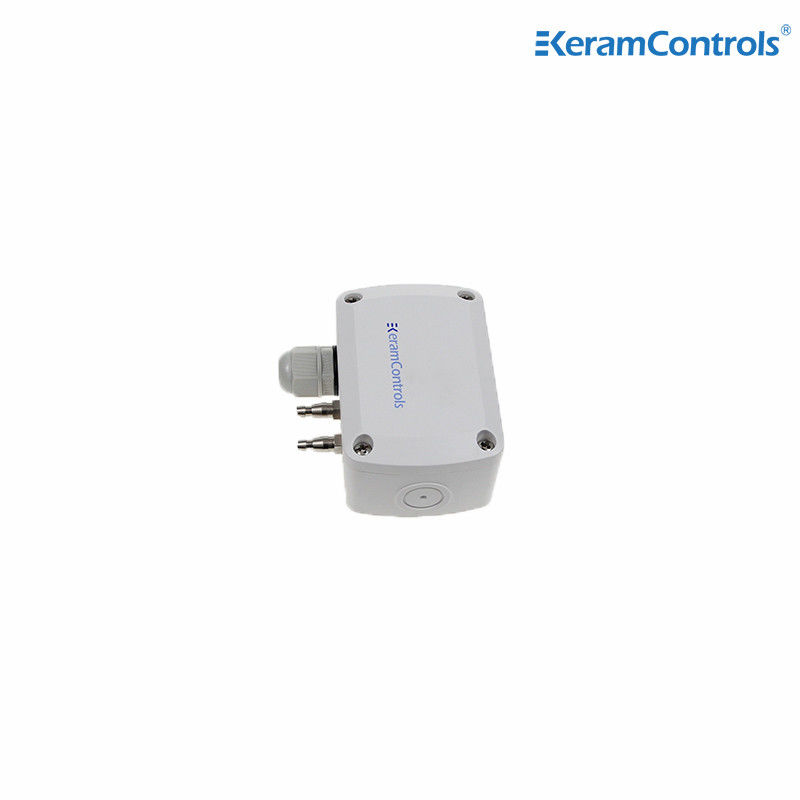

IP65 Digital Differential Pressure Sensor For Pharmaceutical Clean Rooms

IP65 Digital Differential Pressure Sensor For Pharmaceutical Clean Rooms
IP65 Digital Differential Pressure Sensor For Pharmaceutical Clean Rooms
IP65 Digital Differential Pressure Sensor For Pharmaceutical Clean Rooms IP65 Digital Differential Pressure Sensor For Pharmaceutical Clean Rooms IP65 Digital Differential Pressure Sensor For Pharmaceutical Clean Rooms

Large Image :  IP65 Digital Differential Pressure Sensor For Pharmaceutical Clean Rooms

Product Details:
Place of Origin: China
Brand Name: KeramControls
Certification: CE
Model Number: KDP110
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $69-$51/pic
Packaging Details: Carton
Delivery Time: 7-10days
Payment Terms: T/T, L/C
Supply Ability: 2000pic/month

IP65 Digital Differential Pressure Sensor For Pharmaceutical Clean Rooms

Description
Output Signal: 4-20mA (2 Wire) & 4-20mA (3 Wire) & 0-5 / 0-10VDC (3 Wire) & RS-485 Operating Temperature: -20…+70℃
Power Consumption: <1.5W Accuracy: <±1% FS@-5 To +65℃
Protection Class: IP65 Housing Material: PC&ABS,UL94-V0
High Light:

ABS Digital Differential Pressure Sensor

,

3wire Digital Differential Pressure Sensor

,

Pharmaceutical Clean Rooms DP Sensor

Digital differential pressure sensor



Description



Differential Pressure (DP) transmitters measure the difference between two pressures. They use a reference point called the low-side pressure and compare it to the high-side pressure. Ports in the instrument are marked high-side and low-side. The DP reading can be either negative or positive depending on whether the low-side or high-side is the larger value. A DP transmitter can be used as a gauge pressure transmitter if the low-side is left open to the atmosphere.


Feature



  • Ranges from -25/+25Pa to -10000/+10000Pa (according to models)
  • Auto zero manual calibration
  • Voltage, current, digital signal output
  • Standard accuracy <±1% FS
  • IP65 house protection

Application



  • HVAC system
  • Pharmaceutical clean rooms
  • Electronic clean rooms
  • Medical clean rooms
  • Commercial buildings
  • Public transport hub

Technical data



Model KDP110
Measurement Units Pa,mmH2O,inWG,mmHG,KPa,mbar
Accuracy <±1% FS@-5 to +65℃
Response Time 0.5s
Repeat Stability ±0.01 % at FS /Year
Resolution 0.1 Pa; 0.1 mmH2O; 0.01mbar; 0.01mmHG
Media Air and neutral gases
Operating Temperature -20…+70℃
Storage Temperature -40…+60℃
Power Consumption <1.5W
Tolerated over pressure x15
Power Supply 16~30VAC/DC (3wire) / 18~30VDC (2wire)
Output Signal 4-20mA(2wire)
4-20mA(3wire)
0~5V/0~10VDC(3wire)
RS-485
Customized
Auto Zero Manual calibration
Housing Material PC&ABS,UL94V-0
Protection Class IP65/NEMA4
Cable Gland M16*1.5

Dimension



IP65 Digital Differential Pressure Sensor For Pharmaceutical Clean Rooms 0IP65 Digital Differential Pressure Sensor For Pharmaceutical Clean Rooms 1


Measuring range adjustment



IP65 Digital Differential Pressure Sensor For Pharmaceutical Clean Rooms 2


Output setting(3 wire Model)



IP65 Digital Differential Pressure Sensor For Pharmaceutical Clean Rooms 3

IP65 Digital Differential Pressure Sensor For Pharmaceutical Clean Rooms 4


Manual Zero-point correction



IP65 Digital Differential Pressure Sensor For Pharmaceutical Clean Rooms 5


Ordering guide



KDP110-Range-Output



Model Range Output
KDP110 -100~+100Pa (1) 4-20mA(2 wire) (E)
-1000~+1000Pa (2) 4-20mA(3 wire) (F)
-2000~+2000Pa (3) 0-5/0-10V(3 wire) (G)
-10000~+10000Pa (4) RS-485 (H)
    Customized



IP65 Digital Differential Pressure Sensor For Pharmaceutical Clean Rooms 6

IP65 Digital Differential Pressure Sensor For Pharmaceutical Clean Rooms 7
