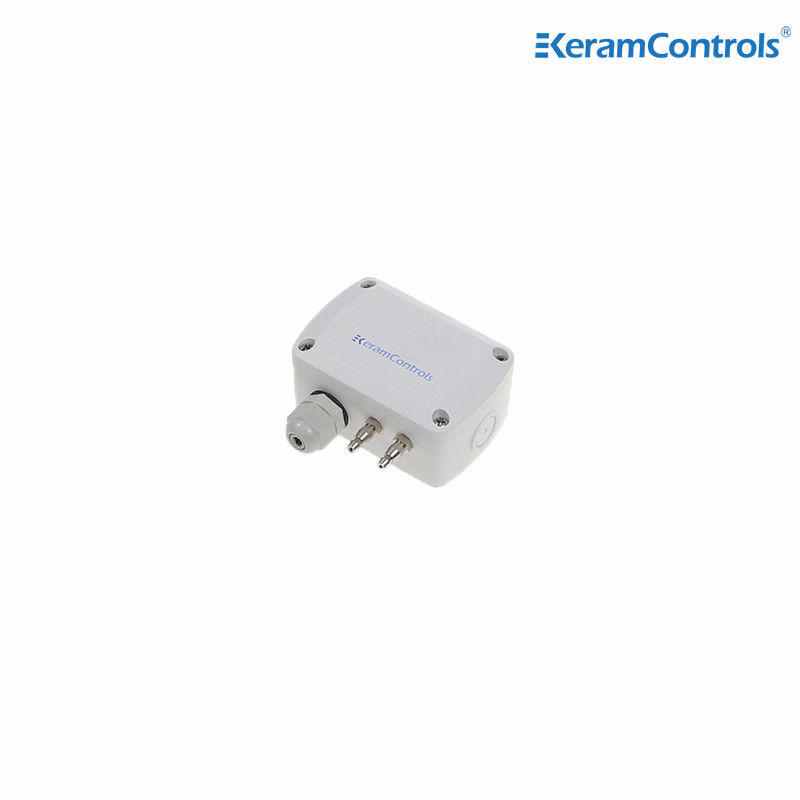

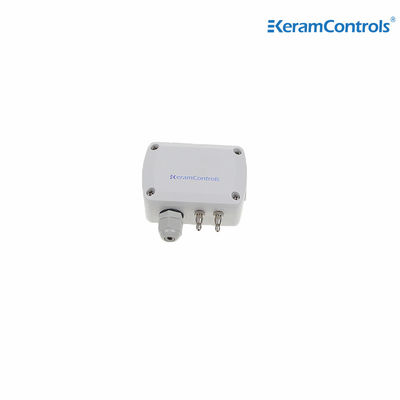

Differential Air Pressure Sensor IP65 NEMA4 For HVAC System

Differential Air Pressure Sensor IP65 NEMA4 For HVAC System
Differential Air Pressure Sensor IP65 NEMA4 For HVAC System
Differential Air Pressure Sensor IP65 NEMA4 For HVAC System Differential Air Pressure Sensor IP65 NEMA4 For HVAC System Differential Air Pressure Sensor IP65 NEMA4 For HVAC System

Large Image :  Differential Air Pressure Sensor IP65 NEMA4 For HVAC System

Product Details:
Place of Origin: China
Brand Name: KeramControls
Certification: CE
Model Number: KDP110
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $69-$51/pic
Packaging Details: Carton
Delivery Time: 7-10days
Payment Terms: T/T, L/C
Supply Ability: 2000pic/month

Differential Air Pressure Sensor IP65 NEMA4 For HVAC System

Description
Output Signal: 4-20mA (2 Wire) & 4-20mA (3 Wire) & 0-5 / 0-10VDC (3 Wire) & RS-485 Operating Temperature: -20…+70℃
Power Consumption: <1.5W Accuracy: <±1% FS@-5 To +65℃
Protection Class: IP65 Housing Material: PC&ABS,UL94-V0
High Light:

Differential Air Pressure Sensor IP65

,

NEMA4 Air Pressure Sensor

,

HVAC System DPT

Differential air pressure sensor



Description



Differential pressure transmitters can be used for reaction and process monitoring in a range of industrial sectors, with high resistance to corrosive media and atmospheric moisture. The diaphragms are typically fabricated from stainless-steel and are inherently resistant to oxidization and gas adsorption in flue pipework for example. Inconel diaphragms can be applied for improved resistance to salt water in marine hydrocarbon exploration.

The electronic module can be calibrated to perform for dry and wet leg applications, providing accurate pressure readings for materials that evaporate or condensate. Select differential pressure transmitters also feature wireless communications to enable remote monitoring of pressure readings in potentially hazardous applications.

Further applications of differential pressure transmitters include low-temperature reaction tank monitoring in the chemical sector and filtration monitoring for a range of flow systems.


Feature



  • Ranges from -25/+25Pa to -10000/+10000Pa (according to models)
  • Auto zero manual calibration
  • Voltage, current, digital signal output
  • Standard accuracy <±1% FS
  • IP65 house protection
  • When ≤100Pa,accuracy<±3%FS±2Pa

Application



  • HVAC system
  • Pharmaceutical clean rooms
  • Electronic clean rooms
  • Medical clean rooms
  • Commercial buildings
  • Public transport hub

Technical data



Model KDP110
Measurement Units Pa,mmH2O,inWG,mmHG,KPa,mbar
Accuracy <±1% FS@-5 to +65℃
Response Time 0.5s
Repeat Stability ±0.01 % at FS /Year
Resolution 0.1 Pa; 0.1 mmH2O; 0.01mbar; 0.01mmHG
Media Air and neutral gases
Operating Temperature -20…+70℃
Storage Temperature -40…+60℃
Power Consumption <1.5W
Tolerated over pressure x15
Power Supply 16~30VAC/DC (3wire) / 18~30VDC (2wire)
Output Signal 4-20mA(2wire)
4-20mA(3wire)
0~5V/0~10VDC(3wire)
RS-485
Customized
Auto Zero Manual calibration
Housing Material PC&ABS,UL94V-0
Protection Class IP65/NEMA4
Cable Gland M16*1.5

Dimension



Differential Air Pressure Sensor IP65 NEMA4 For HVAC System 0Differential Air Pressure Sensor IP65 NEMA4 For HVAC System 1


Measuring range adjustment



Differential Air Pressure Sensor IP65 NEMA4 For HVAC System 2


Output setting(3 wire Model)



Differential Air Pressure Sensor IP65 NEMA4 For HVAC System 3

Differential Air Pressure Sensor IP65 NEMA4 For HVAC System 4


Manual Zero-point correction



Differential Air Pressure Sensor IP65 NEMA4 For HVAC System 5


Ordering guide



KDP110-Range-Output



Model Range Output
KDP110 -100~+100Pa (1) 4-20mA(2 wire) (E)
-1000~+1000Pa (2) 4-20mA(3 wire) (F)
-2000~+2000Pa (3) 0-5/0-10V(3 wire) (G)
-10000~+10000Pa (4) RS-485 (H)
    Customized



Differential Air Pressure Sensor IP65 NEMA4 For HVAC System 6

Differential Air Pressure Sensor IP65 NEMA4 For HVAC System 7
