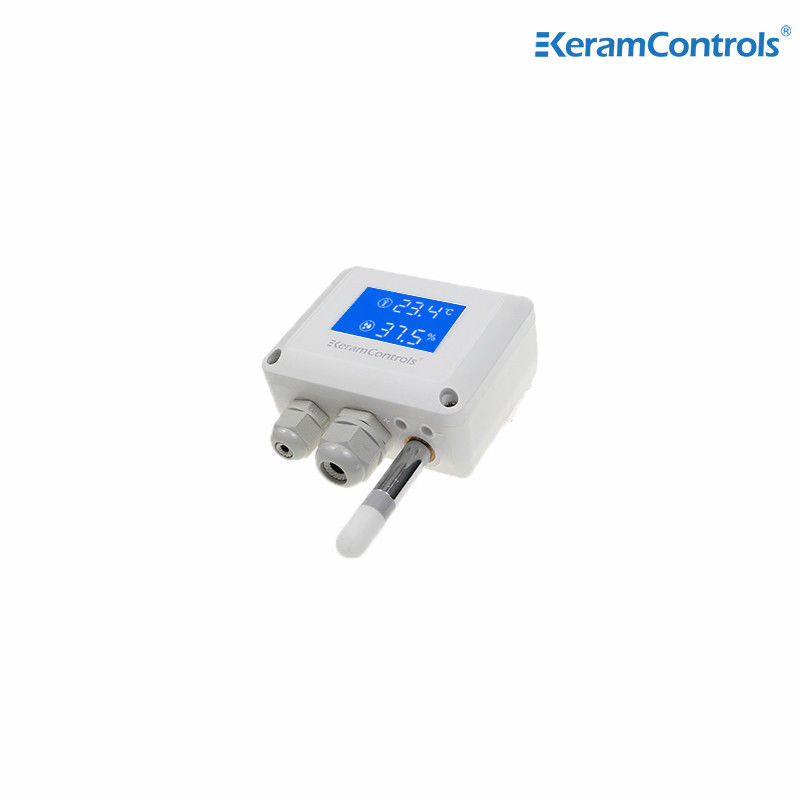

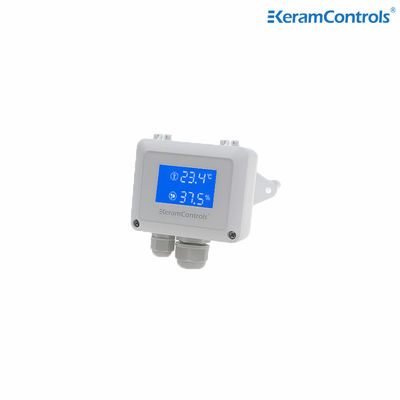

4-20mA / RS 485 Output Temperature Humidity Sensor With IP65 Protection Class
| Operating Humidity: | 0...100%RH | Temperature Range: | DIP Switch |
|---|---|---|---|
| Display: | Blacklight LCD | Temperature Range: | −35 ··· +80 °C |
| Temperature-accuracy: | ±0.3°C (20-60°C) | Humidity Range: | 0 ··· 100 %RH |
| Humidity-accuracy: | ±2% (0-90% @25°C) / ±3% (90-100% @25°C) | Output: | 4-20mA/0-5V/0-10V/RS-485 |
| Operating Temperature: | -35 ··· +70°C | ||
| Highlight |
IP65 Class Temperature Humidity Sensor,30m/s Speed Temperature Humidity Sensor,RS 485 Temperature Humidity Transmitter |
||
4-20mA / 485 output temperature humidity sensor
Description
A temperature and humidity sensor are low cost-sensitive electronic devices that detects, measures and reports both dampness and air temperature. The proportion of moisture noticeable all around to the highest amount of moisture at a specific air temperature.
It is one of the most important devices that has been widely in consumer, industrial, biomedical, and environmental etc. applications for measuring and monitoring temperature and humidity to a specific location especially in a data center or a sever room.
In most industries, temperature and humidity measurement is important because it played a role for a safety of all crucial equipment that may affect the whole operation.
Feature
- LCD display
Large size backlight display
- Shell connected by hinge
More convenient wiring and setting
- M16 M20 double cable gland
Cable size φ5…12mm
- Smooth and flflat surface
Prevent the pollution of the shell surface in harsh environment
- IP65/NEMA4
Application
- HVAC system
- Greenhouse
- Food transportation
- Cold storage and refrigeration
- Clean room environment monitoring
Technical Data
| Model | KTH500 |
| Power Supply | 16-30VDC(2wire 4-20mA)/16-30V AC or V DC (0-5V/0-10V/4-20mA/RS-485 ) |
| Output | 4-20mA/0-5V/0-10V/RS-485 |
| Operating Temperature | -35…+70℃ |
| Storage Temperature | -40…+80℃ |
| Operating Humidity | 0...100%RH |
| Temperature Range | DIP |
| Display | Backlight LCD(4-20mA 2 wire no backlight LDC) |
| Maximum Wind/Flow Speed | 30m/s |
| Electromagnetic compliance | EN61326-1,Industrial Environment |
| Housing Material | PC&ABS,UL94V-0 |
| Protection Class | IP65/NEMA 4 |
| Cable Gland | M16*1.5 |
| Measurement Performance-Temperature | |
| Measurement Range | -35...+80℃ |
| Accuracy | ±0.3℃(20-60℃) |
| Temperature Dependence | ±0.01℃/℃ |
| Measurement Performance-Humidity | |
| Measurement Range | 0...100%RH |
| Accuracy | ±2%(0-90% @25℃)/±3%(90-100%@25℃) |
| Stability in Typical HVAC Applications | ±0.01RH/Year |
Dimension(mm)
Measuring range adjustment
Output setting(3 wire Model)
Ordering guide
KTH500——Output——Installation——Filter
| Model | Output | Installation | Filter | |||
| KTH500 | 4-20mA(2 wire) | (E) | Wall | (W) | PTFE | (P) |
| 4-20mA(3 wire) | (F) | Duct | (D) | Stainless | (S) | |
| 0-5V/0-10VAD(3 wire) | (G) | |||||
| RS-485 | (H) | |||||
