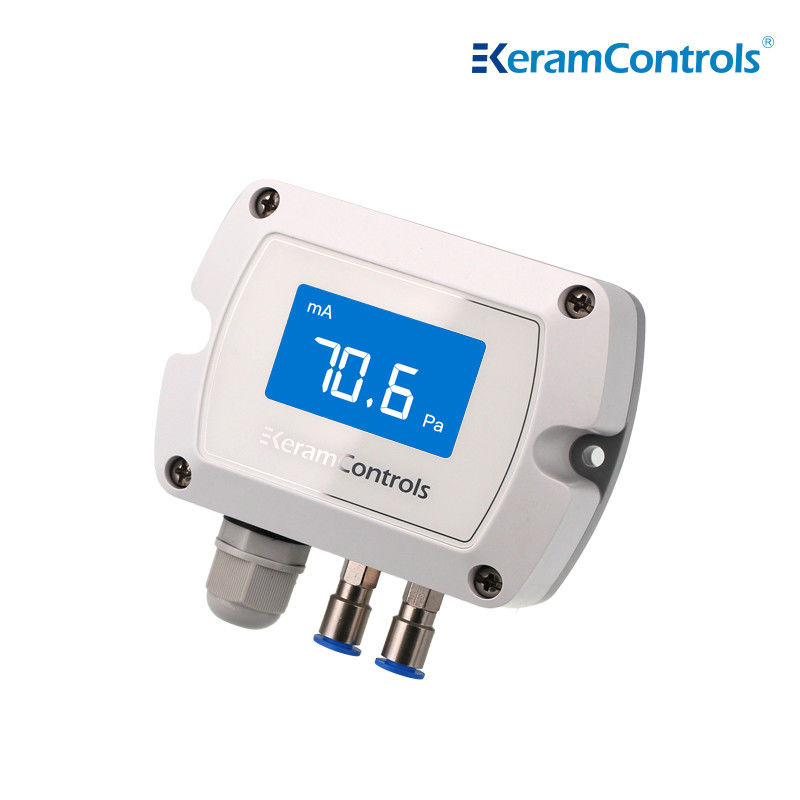

KDP210Q RS485 LCD Display Differential Pressure Transmitter For Clean Room

KDP210Q RS485 LCD Display Differential Pressure Transmitter For Clean Room
KDP210Q RS485 LCD Display Differential Pressure Transmitter For Clean Room

Large Image :  KDP210Q RS485 LCD Display Differential Pressure Transmitter For Clean Room

Product Details:
Place of Origin: China
Brand Name: KeramControls
Certification: CE
Model Number: KDP210Q
Payment & Shipping Terms:
Minimum Order Quantity: 10 units
Price: $79-$61
Packaging Details: Carton
Delivery Time: 7-10days
Payment Terms: T/T
Supply Ability: 2000pic/month

KDP210Q RS485 LCD Display Differential Pressure Transmitter For Clean Room

Description
Repeat Stability: ±0.01 % At FS /Year Storage Temperature: -40…+60℃
Auto Zero: Manual Calibration
High Light:

RS485 LCD Display Differential Pressure Transmitter

,

KDP210Q Differential Pressure Transmitter

,

Clean Room Differential Pressure Transmitter

KDP210Q RS485 LCD display differential pressure transmitter for clean room



Description



KDP210Q series differential pressure transmitters are available with and without screen for customers to choose from with high precision, ultra-low & adjustable range, fast response characteristics.The cable connector adopts M16*1.5 to tighten the threaded port, which is not only effective in protecting against water and dust, but also suitable for multi-size cables.



Feature



  • Ranges from -25/+25Pa to -10000/+10000Pa (according to models)
  • Auto zero manual calibration
  • Voltage, current, digital signal output
  • Standard accuracy <±1% FS
  • IP65 house protection
  • When ≤100Pa,accuracy<±3%FS±2Pa





Application



  • HVAC system
  • Pharmaceutical clean rooms
  • Electronic clean rooms
  • Medical clean rooms
  • Commercial buildings
  • Public transport hub






Technical data



Model KDP210Q
Measurement Units Pa,mmH2O,inWG,mmHG,KPa,mbar
Accuracy <±1% FS@-5 to +65℃
Response Time 0.5s
Repeat Stability ±0.01 % at FS /Year
Resolution 0.1 Pa; 0.1 mmH2O; 0.01mbar; 0.01mmHG
Media Air and neutral gases
Operating Temperature -20…+70℃
Storage Temperature -40…+60℃
Power Consumption <1.5W
Tolerated over pressure x15
Power Supply 16~30VAC/DC (3wire) / 18~30VDC (2wire)
Output Signal 4-20mA(2wire)
4-20mA(3wire)
0~5V/0~10VDC(3wire)
RS-485
Customized
Auto Zero Manual calibration
Housing Material PC&ABS,UL94V-0
Protection Class IP65/NEMA4
Display Backlight LCD display(4-20mA 2 wire without backlight)
Cable Gland M16*1.5



Dimension(mm)



KDP210Q RS485 LCD Display Differential Pressure Transmitter For Clean Room 0





Measuring range adjustment



KDP210Q RS485 LCD Display Differential Pressure Transmitter For Clean Room 1


Output setting(3 wire Model)



KDP210Q RS485 LCD Display Differential Pressure Transmitter For Clean Room 2

KDP210Q RS485 LCD Display Differential Pressure Transmitter For Clean Room 3


Manual Zero-point correction



KDP210Q RS485 LCD Display Differential Pressure Transmitter For Clean Room 4







Ordering guide



KDP210Q-Range-display-output



Model Ranges Display output
KDP210Q -100~+100Pa (1) LCD backlight (D) 4-20mA(2 wire) (E)
-1000~+1000Pa (2)     4-20mA(3 wire) (F)
-2000~+2000Pa (3)     0-5/0-10VDC (3 wire) (G)
-10000~+10000Pa (4)     RS-485 (H)
        Customized





KDP210Q RS485 LCD Display Differential Pressure Transmitter For Clean Room 5

KDP210Q RS485 LCD Display Differential Pressure Transmitter For Clean Room 6

KDP210Q RS485 LCD Display Differential Pressure Transmitter For Clean Room 7

FAQ



1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.



2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.



3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.



4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.



5 Q: What is the warranty of your products?

A: Normal is 12 months.



6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
