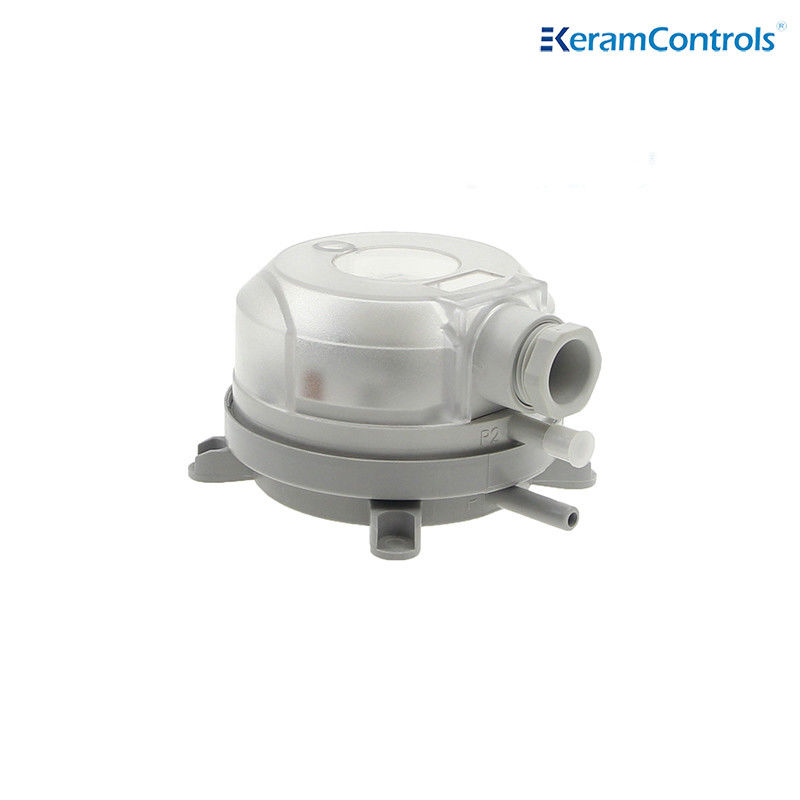

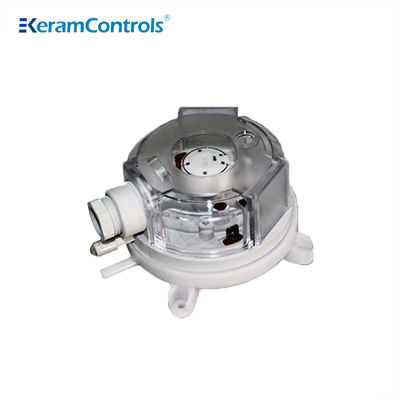

Differential Pressure Control Switches

Product Description:

Differential Pressure Actuated Switches are essential components in various industrial applications where monitoring and controlling pressure differentials is crucial. The Differential Pressure Switches product line offers reliable and precise performance, making them ideal for critical systems that require accurate pressure sensing and control.

With a Contact Arrangement of SPDT (Single Pole Double Throw), these Differential Pressure Operated Switches provide versatile switching capabilities, allowing for both normally open and normally closed configurations depending on the pressure conditions. This flexibility in contact arrangement ensures compatibility with a wide range of system requirements and configurations.

These Differential Pressure Control Switches have received approvals from reputable organizations such as UL, CE, and RoHS, guaranteeing their compliance with industry standards for safety and quality. Users can have peace of mind knowing that these switches have undergone rigorous testing and meet the necessary criteria for reliable performance.

The Electrical Rating of these Differential Pressure Switches is impressive, with a resistance rating of < 50 Milliohms in the initial state. The switches can handle a current of 1.5A Resistive (0.4A Inductive) at 250V, making them suitable for demanding applications where electrical loads can vary. This high electrical rating ensures stable and consistent performance under varying operating conditions.

When it comes to Electric Connection options, these Differential Pressure Operated Switches offer flexibility with a choice between 6.3x0.8 Blade 46244 or Screw Terminals. This variety in electric connection types allows for easy integration into different systems and ensures compatibility with existing wiring configurations, simplifying installation and maintenance processes.

Operating under a Max Pressure of 10kPa, these Differential Pressure Actuated Switches are designed to withstand varying pressure conditions while maintaining accurate and reliable switching performance. The switches' robust construction and reliable pressure sensing mechanisms make them suitable for applications where precise pressure control is essential for system operation.

Features:

• Product Name: Differential Pressure Switches
• Electrical Rating:
  • Resistance: Initial: < 50 Milliohms
  • Current: 1.5A Resistive (0.4A Inductive) 250v
• Media: Air, non-combustible and non-aggressive gases
• Installation: Vertical Installation
• Protection: IP 54 (With Cover)
• Customized Support: OEM

Technical Parameters:

Applications:

Keramcontrols QAD Series Differential Pressure Switches are versatile products suitable for a wide range of application occasions and scenarios due to their reliable performance and robust design. These switches are designed to monitor differential pressure and are commonly used in various industries for different purposes.

One key application scenario for Keramcontrols QAD Series Differential Pressure Switches is in HVAC systems where they serve as Differential Pressure Monitoring Switches. These switches help ensure proper airflow and filter efficiency by monitoring pressure differentials across filters and ducts. By accurately detecting pressure variations, these switches contribute to maintaining optimal air quality and system performance.

Another important application area is in industrial processes where safety is paramount. Here, the Keramcontrols QAD Series Differential Pressure Switches function as Differential Pressure Safety Switches. By promptly reacting to pressure changes, these switches help prevent potentially dangerous situations, such as overpressure or underpressure conditions, thus ensuring a safe working environment.

Furthermore, in fluid handling systems, these switches can be utilized as Differential Pressure Actuated Switches. By responding to changes in pressure levels, they enable the control and regulation of fluid flow, ensuring efficient operation and preventing system damage.

Originating from China, Keramcontrols QAD Series Differential Pressure Switches are certified with UL, CE, and RoHS certifications, guaranteeing compliance with international quality and safety standards. With an IP 54 protection rating (with cover), these switches offer reliable performance even in challenging environments.

With an impressive accuracy of ±1% of full scale, a long life of over 10^6 switching cycles, and an electrical rating suitable for various applications, these switches are designed to meet the diverse needs of different industries. Operating within a temperature range of -40°C to 85°C, they can withstand harsh environmental conditions.
