4-20mA Air Velocity Transmitter 0-10V 16-24V Cable type

4-20mA Air Velocity Transmitter 0-10V 16-24V Cable type
4-20mA Air Velocity Transmitter 0-10V 16-24V Cable type
4-20mA Air Velocity Transmitter 0-10V 16-24V Cable type 4-20mA Air Velocity Transmitter 0-10V 16-24V Cable type 4-20mA Air Velocity Transmitter 0-10V 16-24V Cable type 4-20mA Air Velocity Transmitter 0-10V 16-24V Cable type 4-20mA Air Velocity Transmitter 0-10V 16-24V Cable type

Large Image :  4-20mA Air Velocity Transmitter 0-10V 16-24V Cable type

Product Details:
Place of Origin: China
Brand Name: Keram Controls
Certification: CE
Model Number: KAV110
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: USD50-70/piece EXW factory
Packaging Details: Carton
Delivery Time: 5-10 working days
Payment Terms: T/T, Western Union

4-20mA Air Velocity Transmitter 0-10V 16-24V Cable type

Description
Power Supply: 16-24VAC Or VDC Operating Temperature: -5…+70℃
Output: 4-20mA/0-5V/0-10V/RS-485 Accuracy: 0.2%FS
High Light:

KAV120 20mA Air Velocity Transmitter

,

KAV120 10v Air Velocity Transmitter

,

KAV120 4mA sensor transmitter

4-20mA Air Velocity Transmitter 0-10V 16-24V Cable type



Description

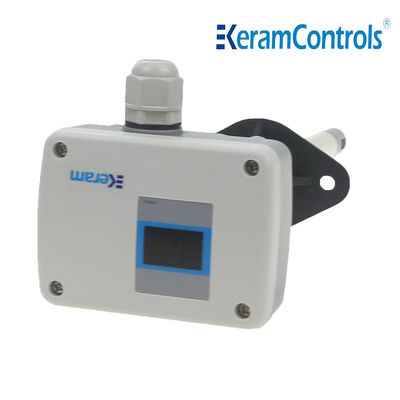

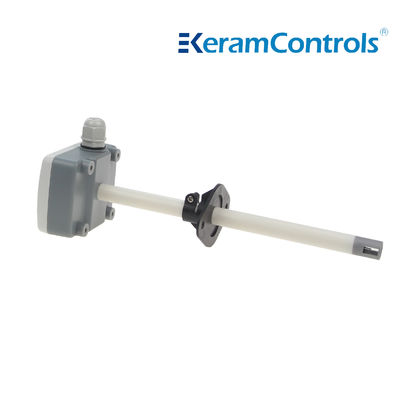

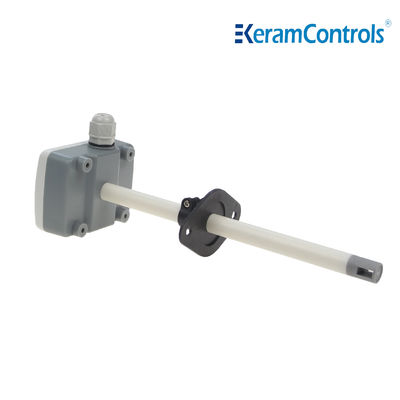

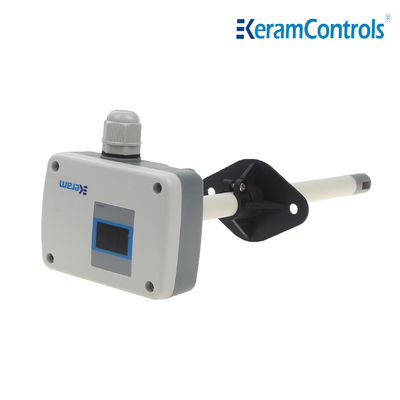

KAV110 air velocity transmitter

Cable type Air Velocity Transmitter 4-20mA Output IP65

KAV110 series air velocity transmitter adopts high temperature resistant and corrosion resistant material shell, which can achieve stable and reliable performance even in harsh working environment.

Compared with the traditional velocity sensor, it can obtain better stability, can ensure faster and accurate small air volume measurement and accuracy, wide range ratio, the measurement data is accurately calibrated in the full range through the internal microcontroller, linear compensation and temperature compensation are both For digitization, it creates excellent performance of high precision and high resolution.


Specification



Model KAV110
Power supply 16-24VAC or VDC
output 4-20mA/ 0-5V/ 0-10V/ RS-485
Operating temperature -5…+70℃
Storage temperature -20…+70℃
Permissible humidity 0…90 %RH
Measuring range 1~30m/s
Accuracy 0.2%FS
Working frequency 50Hz
Maximum air velocity 30m/s
Electromagnetic compatibility EN61326-1 standard (industrial environment)
Housing material ABS
Protection IP65/ NEMA4
Cable gland M16*1.5

Dimensions(mm)



4-20mA Air Velocity Transmitter 0-10V 16-24V Cable type 0


Ordering Guide



Model-Output-Display-Range-Probe



Model Output Display Range Probe
KAV110 0-5V (1) Yes (Y) 0…1 m/s (A) 220mm(Standard) (S)
0-10V (2) No (N) 0…2m/s (B) Customized
4-20mA (3)     0…5 m/s (C)
Rs-485 (4)     0…10 m/s (D)
        0…15 m/s (E)
        0…20 m/s (F)
        0…30 m/s (G)



4-20mA Air Velocity Transmitter 0-10V 16-24V Cable type 1
