0-1s Air Velocity Transmitter For Measuring Wind Speed
| Cable Gland: | M16*1.5 | Output: | 4-20mA/ 0-5V/ 0-10V/ RS-485 |
|---|---|---|---|
| Operating Temperature: | -5…+70℃ | ||
| Highlight |
1s Air Velocity Transmitter,Wind Speed Measuring Air Velocity Transmitter,RS485 Air Velocity Transmitter |
||
0-1s air velocity transmitter for measuring wind speed
Description

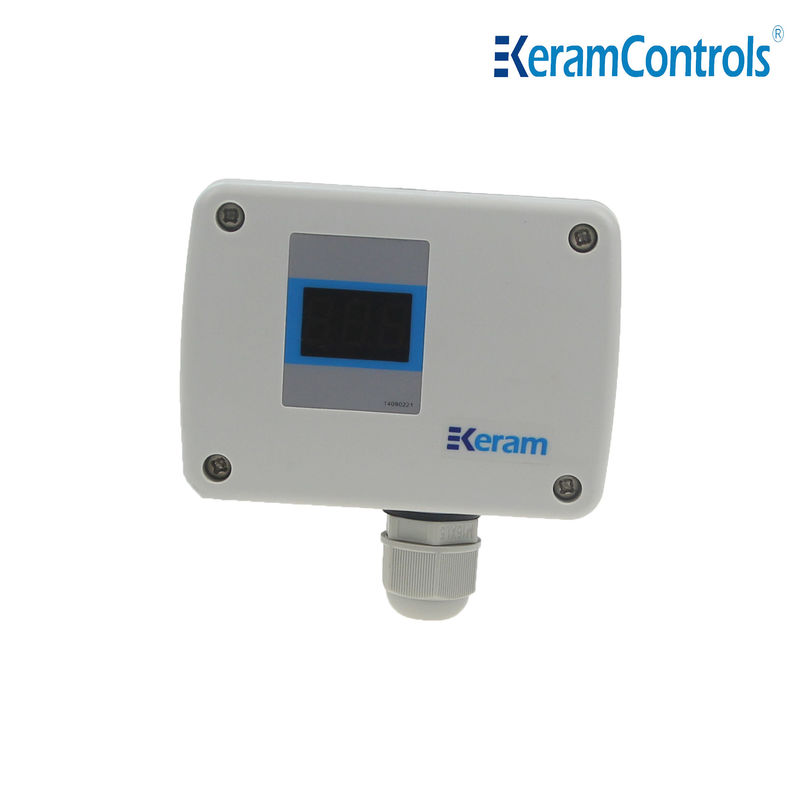

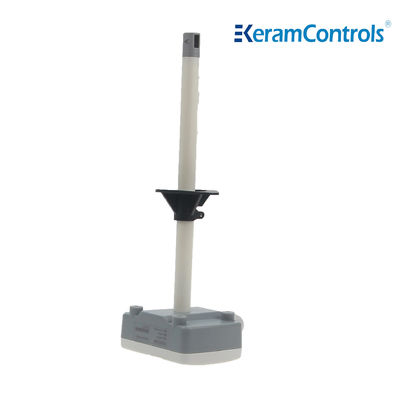

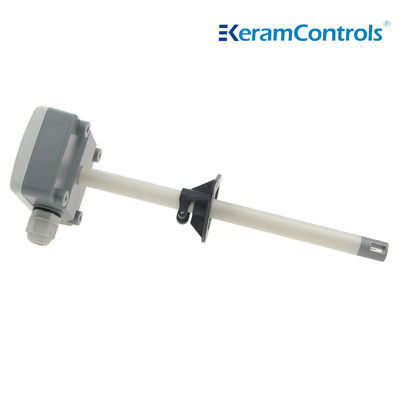

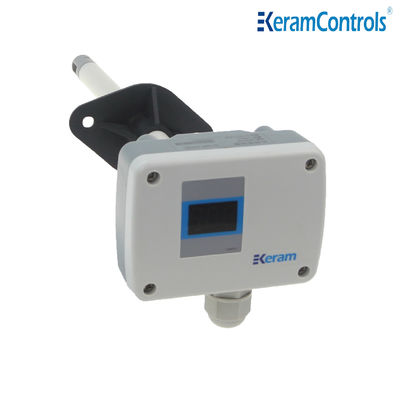

KAV110 series wind speed transmitter is designed with LCD display or without display. Customers can purchase according to their own needs. The range of this wind speed transmitter is 1~30m/s, and users can choose according to their needs, we also support non-standard customization.
Specification
| Model | KAV110 |
| Power supply | 16-24VAC or VDC |
| output | 4-20mA/ 0-5V/ 0-10V/ RS-485 |
| Operating temperature | -5…+70℃ |
| Storage temperature | -20…+70℃ |
| Permissible humidity | 0…90 %RH |
| Measuring range | 1~30m/s |
| Accuracy | 0.2%FS |
| Working frequency | 50Hz |
| Maximum air velocity | 30m/s |
| Electromagnetic compatibility | EN61326-1 standard (industrial environment) |
| Housing material | ABS |
| Protection | IP65/ NEMA4 |
| Cable gland | M16*1.5 |
Dimensions(mm)
Ordering Guide
Model-Output-Display-Range-Probe
| Model | Output | Display | Range | Probe | ||||
| KAV110 | 0-5V | (1) | Yes | (Y) | 0…1 m/s | (A) | 220mm(Standard) | (S) |
| 0-10V | (2) | No | (N) | 0…2m/s | (B) | Customized | ||
| 4-20mA | (3) | 0…5 m/s | (C) | |||||
| Rs-485 | (4) | 0…10 m/s | (D) | |||||
| 0…15 m/s | (E) | |||||||
| 0…20 m/s | (F) | |||||||
| 0…30 m/s | (G) | |||||||
FAQ
1 Q: What's the delivery time?
A: According to the specification and quantity of your order, generally 4
days for normal standard products within 10pcs.
2 Q:Are you manufacturer or trading company?
A: We are manufacturer with many years of experience.We have our
own factory.Welcome to visit our factory.
3 Q: Can we use our logo on the products?
A: Yes.We can provide OEM service.
4 Q: Do you have products with ex-proof certificate?
A: Yes,we can offer intrinsic-safety and flame proof certificates.
5 Q: What is the warranty of your products?
A: Normal is 12 months.
6 Q: What's the means of transport?
A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
