Product Details:
|
| Power Supply: | 16-24VAC Or VDC | Output: | 4-20mA / 0-5V / 0-10V/ RS 485 |
|---|---|---|---|
| Operating Temperature: | -5…+70℃ | Storage Temperature: | -20…+70℃ |
| Permissible Humidity: | 0 … 90 %RH | Working Frequency: | 50Hz |
| Highlight: | KAV110 Air Velocity Sensor Transmitters,KAV110 20mA Sensor Transmitters,KAV110 air velocity transmitter |
||

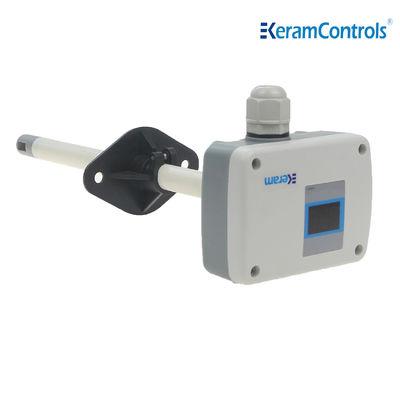

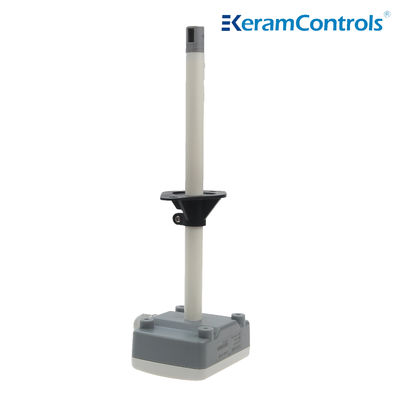

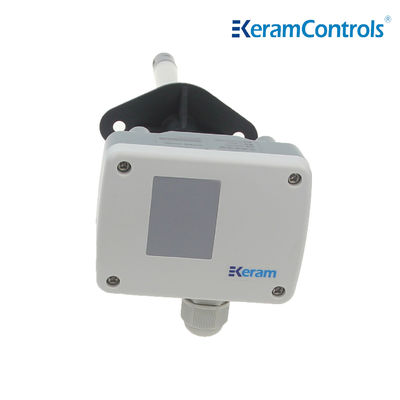

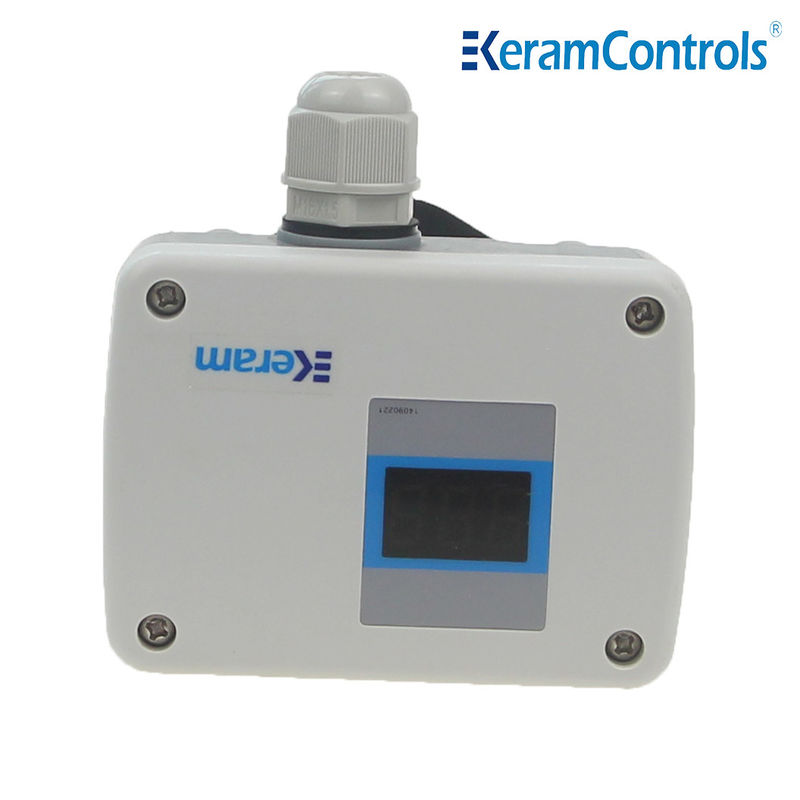

KAV110 air velocity transmitter.
Air Duct Mounted Air Velocity Sensor Transmitters 4-20mA Output IP65.
KAV110 series air velocity transmitter adopts high temperature resistant and corrosion resistant material shell, which can achieve stable and reliable performance even in harsh working environment. Compared with the traditional velocity sensor, it can obtain better stability, can ensure faster and accurate small air volume measurement and accuracy, wide range ratio, the measurement data is accurately calibrated in the full range through the internal microcontroller, linear compensation and temperature compensation are both For digitization, it creates excellent performance of high precision and high resolution.
| Model | KAV110 |
| Power supply | 16-24VAC or VDC |
| output | 4-20mA/ 0-5V/ 0-10V/ RS-485 |
| Operating temperature | -5…+70℃ |
| Storage temperature | -20…+70℃ |
| Permissible humidity | 0…90 %RH |
| Measuring range | 1~30m/s |
| Accuracy | 0.2%FS |
| Working frequency | 50Hz |
| Maximum air velocity | 30m/s |
| Electromagnetic compatibility | EN61326-1 standard (industrial environment) |
| Housing material | ABS |
| Protection | IP65/ NEMA4 |
| Cable gland | M16*1.5 |
Model-Output-Display-Range-Probe
| Model | Output | Display | Range | Probe | ||||
| KAV110 | 0-5V | (1) | Yes | (Y) | 0…1 m/s | (A) | 220mm(Standard) | (S) |
| 0-10V | (2) | No | (N) | 0…2m/s | (B) | Customized | ||
| 4-20mA | (3) | 0…5 m/s | (C) | |||||
| Rs-485 | (4) | 0…10 m/s | (D) | |||||
| 0…15 m/s | (E) | |||||||
| 0…20 m/s | (F) | |||||||
| 0…30 m/s | (G) | |||||||
1 Q: What's the delivery time?
A: According to the specification and quantity of your order, generally 4
days for normal standard products within 10pcs.
2 Q:Are you manufacturer or trading company?
A: We are manufacturer with many years of experience.We have our
own factory.Welcome to visit our factory.
3 Q: Can we use our logo on the products?
A: Yes.We can provide OEM service.
4 Q: Do you have products with ex-proof certificate?
A: Yes,we can offer intrinsic-safety and flame proof certificates.
5 Q: What is the warranty of your products?
A: Normal is 12 months.
6 Q: What's the means of transport?
A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
