Quality 0-30m/S Air Velocity Transmitter For Operating Room factory

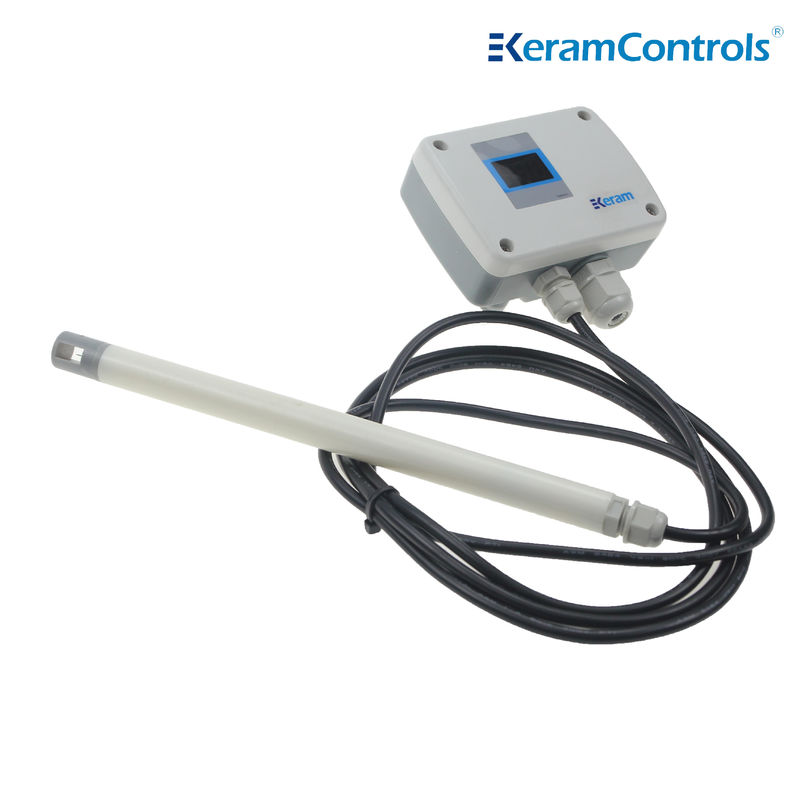

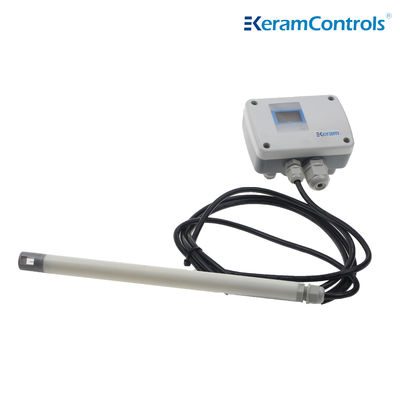

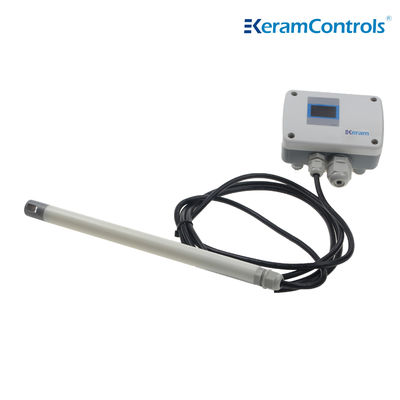

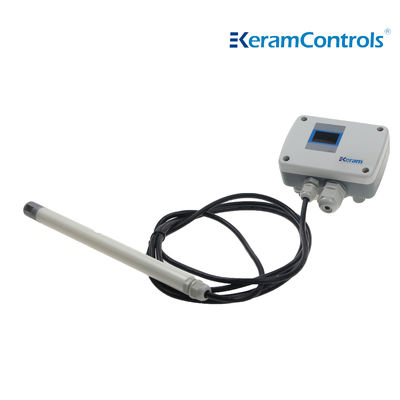

0-30m/S Air Velocity Transmitter For Operating Room

Name: 0-30m/S Air Velocity Transmitter For Operating Room
Brand: Keram (Nanjing)ELECTRICAL Equipment Co., Ltd.
SKU: KAV120
Price: 106.00 USD
Availability: InStock

Place of Origin: China

Brand Name: KeramControls

Certification: CE

Model Number: KAV120

Minimum Order Quantity: 10 pcs

Tags:

M16 Air Velocity Transmitter

30m/s Air Velocity Transmitter

EN61326-1 Velocity Transmitter

Working Frequency:

50Hz

Housing Material:

ABS

Permissible Humidity:

0…90 %RH

Highlight

30m/S Operating Room Air Velocity Transmitter

ABS Air Velocity Transmitter

Operating Room Air Velocity Transmitter

Product Description

0-30m/s air velocity transmitter for operating room

Description

KAV120 cable type wind speed transmitter adopts ABS engineering plastics, and the unique design includes waterproof joints, so that the transmission can work at 70℃, and can effectively prevent dust and waterproof intrusion, which can effectively protect components and ensure stable operation of the equipment.

Specification

Model	KAV120
Power supply	16-24VAC or VDC
output	4-20mA/ 0-5V/ 0-10V/ RS-485
Operating temperature	-5…+70℃
Storage temperature	-20…+70℃
Permissible humidity	0…90 %RH
Measuring range	1~30m/s
Accuracy	0.2%FS
Working frequency	50Hz
Maximum air velocity	30m/s
Electromagnetic compatibility	EN61326-1 standard (industrial environment)
Housing material	ABS
Protection	IP65/ NEMA4
Cable gland	M16*1.5

Dimensions

0-30m/S Air Velocity Transmitter For Operating Room 0

Ordering Guide

Model-Output-Display-Range-Probe

Model	Output		Display		Range		Probe
KAV120	4-20mA(3 wire)	(F)	YES	(D)	0…1 m/s	(1)	RVVR0.5mm²	70
	0-10V(3 wire)	(G)	No	(-)	0…2m/s	(2)	RVVR1mm²	200
	Rs-485	(H)			0…5 m/s	(3)	RVVR1.5mm²	300
					0…10 m/s	(4)
					0…15 m/s	(5)
					0…20 m/s	(6)
					0…30m/s	(7)

0-30m/S Air Velocity Transmitter For Operating Room 1

FAQ

1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.

2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.

3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.

4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.

5 Q: What is the warranty of your products?

A: Normal is 12 months.

6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
