Product Details:
|
| Power Supply: | 16-24VAC Or VDC | Output: | 4-20mA/0-5V/0-10V/RS-485 |
|---|---|---|---|
| Operating Temperature: | -5…+70℃ | Accuracy: | 0.2%FS |
| Maximum Air Velocity: | 30m/s | ||
| Highlight: | KAV110 Air Duct Mounted Air Velocity Transmitter,4mA Air Velocity Transmitter,KAV110 sensor transmitter |
||

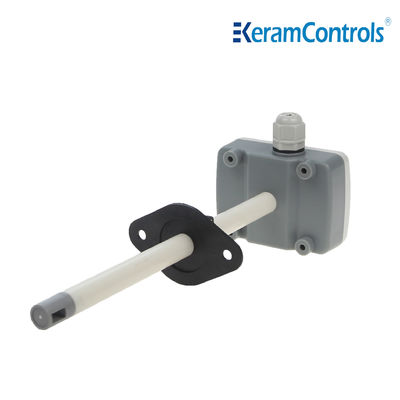

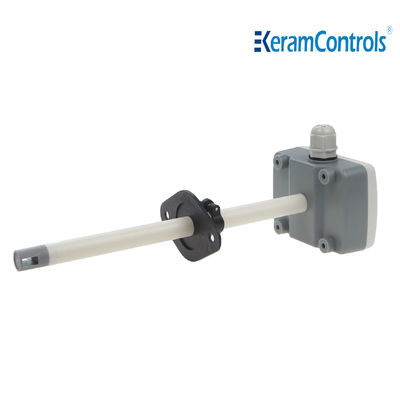

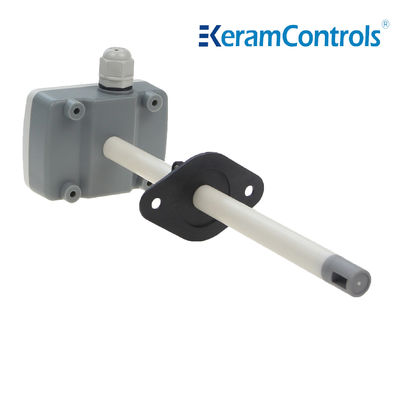

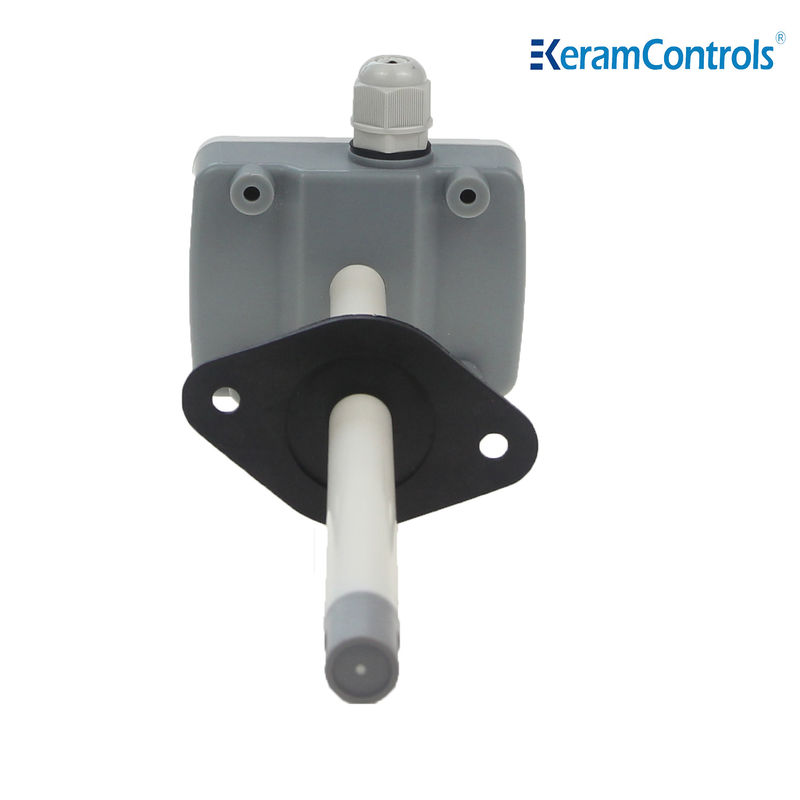

KAV110 air velocity transmitter
Air Duct Mounted Air Velocity Transmitter 4-20mA Output IP65
KAV110 series air velocity transmitter adopts high temperature resistant and corrosion resistant material shell, which can achieve stable and reliable performance even in harsh working environment. Compared with the traditional velocity sensor, it can obtain better stability, can ensure faster and accurate small air volume measurement and accuracy, wide range ratio, the measurement data is accurately calibrated in the full range through the internal microcontroller, linear compensation and temperature compensation are both For digitization, it creates excellent performance of high precision and high resolution.
| Model | KAV110 |
| Power supply | 16-24VAC or VDC |
| output | 4-20mA/ 0-5V/ 0-10V/ RS-485 |
| Operating temperature | -5…+70℃ |
| Storage temperature | -20…+70℃ |
| Permissible humidity | 0…90 %RH |
| Measuring range | 1~30m/s |
| Accuracy | 0.2%FS |
| Working frequency | 50Hz |
| Maximum air velocity | 30m/s |
| Electromagnetic compatibility | EN61326-1 standard (industrial environment) |
| Housing material | ABS |
| Protection | IP65/ NEMA4 |
| Cable gland | M16*1.5 |
Model-Output-Display-Range-Probe
| Model | Output | Display | Range | Probe | ||||
| KAV110 | 0-5V | (1) | Yes | (Y) | 0…1 m/s | (A) | 220mm(Standard) | (S) |
| 0-10V | (2) | No | (N) | 0…2m/s | (B) | Customized | ||
| 4-20mA | (3) | 0…5 m/s | (C) | |||||
| Rs-485 | (4) | 0…10 m/s | (D) | |||||
| 0…15 m/s | (E) | |||||||
| 0…20 m/s | (F) | |||||||
| 0…30 m/s | (G) | |||||||
