Product Details:
Place of Origin: China
Brand Name: Keram Controls
Certification: CE
Model Number: KAV110
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: USD50-70/piece EXW factory
Packaging Details: Carton
Delivery Time: 5-10 working days
Payment Terms: T/T, Western Union

Corrosion Resistant RS485 IP65 Velocity Transmitter

Description
Power Supply: 16-24VAC Or VDC Output: 4-20mA/0-5V/0-10V/RS-485
Operating Temperature: -5…+70℃ Measuring Range: 1~30m/s
Accuracy: 0.2%FS
High Light:

IP65 Velocity Transmitter

,

IP65 RS485 velocity transmitter

,

IP65 Corrosion Resistant air transmitter

Corrosion Resistant RS485 IP65 Velocity Transmitter



Description

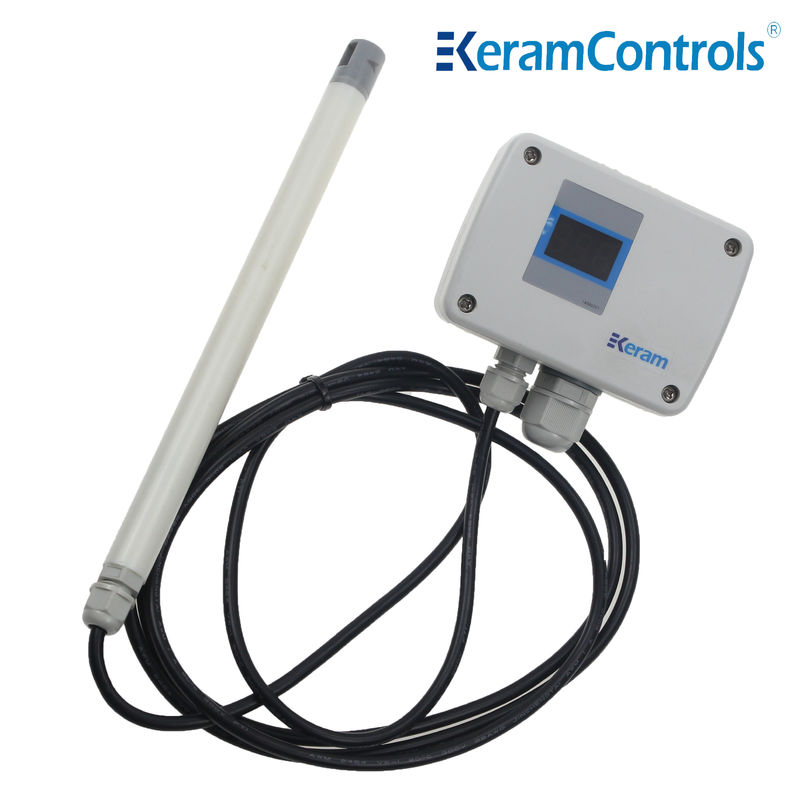

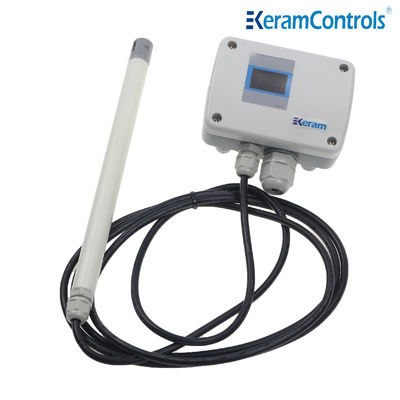

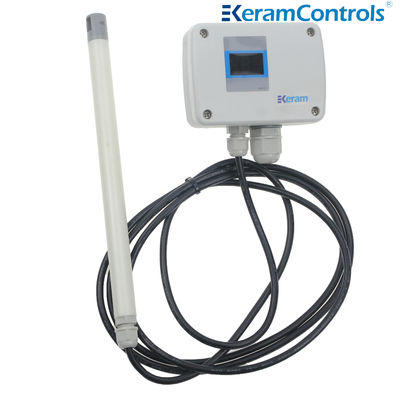

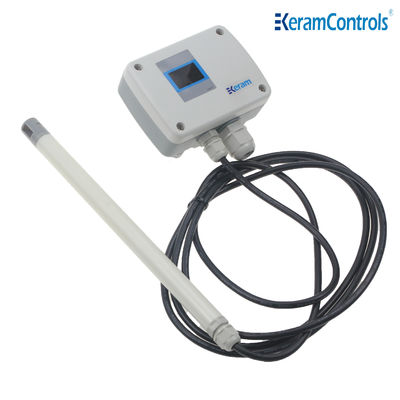

KAV110 air velocity transmitter

Air Duct Mounted Air Velocity Transmitter RS485 Output IP65

KAV110 series air velocity transmitter adopts high temperature resistant and corrosion resistant material shell, which can achieve stable and reliable performance even in harsh working environment.

Compared with the traditional velocity sensor, it can obtain better stability, can ensure faster and accurate small air volume measurement and accuracy, wide range ratio, the measurement data is accurately calibrated in the full range through the internal microcontroller, linear compensation and temperature compensation are both For digitization, it creates excellent performance of high precision and high resolution.


Specification



Model KAV120
Power supply 16-24VAC or VDC
output 4-20mA/ 0-5V/ 0-10V/ RS-485
Operating temperature -5…+70℃
Storage temperature -20…+70℃
Permissible humidity 0…90 %RH
Measuring range 1~30m/s
Accuracy 0.2%FS
Working frequency 50Hz
Maximum air velocity 30m/s
Electromagnetic compatibility EN61326-1 standard (industrial environment)
Housing material ABS
Protection IP65/ NEMA4
Cable gland M16*1.5

Dimensions



Corrosion Resistant RS485 IP65 Velocity Transmitter 0


Ordering Guide



Model-Output-Display-Range-Probe



Model Output Display Range Probe
KAV120 4-20mA(2 wire) (E) YES (D) 0…1 m/s (1) RVVR0.5mm2 70
4-20mA(3 wire) (F) No (-) 0…2m/s (2) RVVR1mm2 200
0-10V(3 wire) (G)     0…5 m/s (3) RVVR1.5mm2 300
Rs-485 (H)     0…10 m/s (4)
0-5V(3 wire) (J)     0…15 m/s (5)
        0…20 m/s (6)
        0…30m/s (7)



Corrosion Resistant RS485 IP65 Velocity Transmitter 1



FAQ



1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.



2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.



3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.



4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.



5 Q: What is the warranty of your products?

A: Normal is 12 months.



6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
