Product Details:
|
| Operating Temperature: | -5…+70℃ | Storage Temperature: | -20…+70℃ |
|---|---|---|---|
| Permissible Humidity: | 0…90 %RH | ||
| Highlight: | 5V Air Velocity Transmitter,Anti Corrosion Air Velocity Transmitter,NEMA4 Air Velocity Transmitter |
||

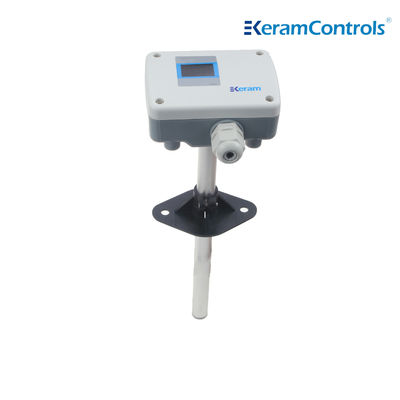

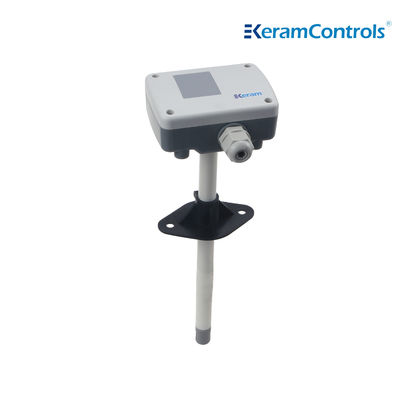

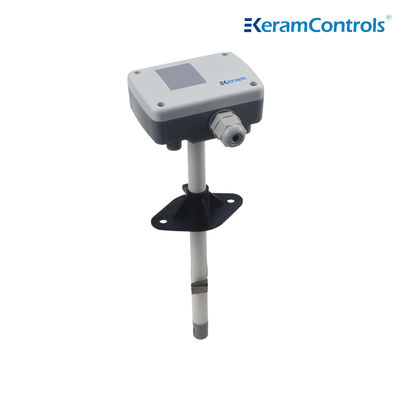

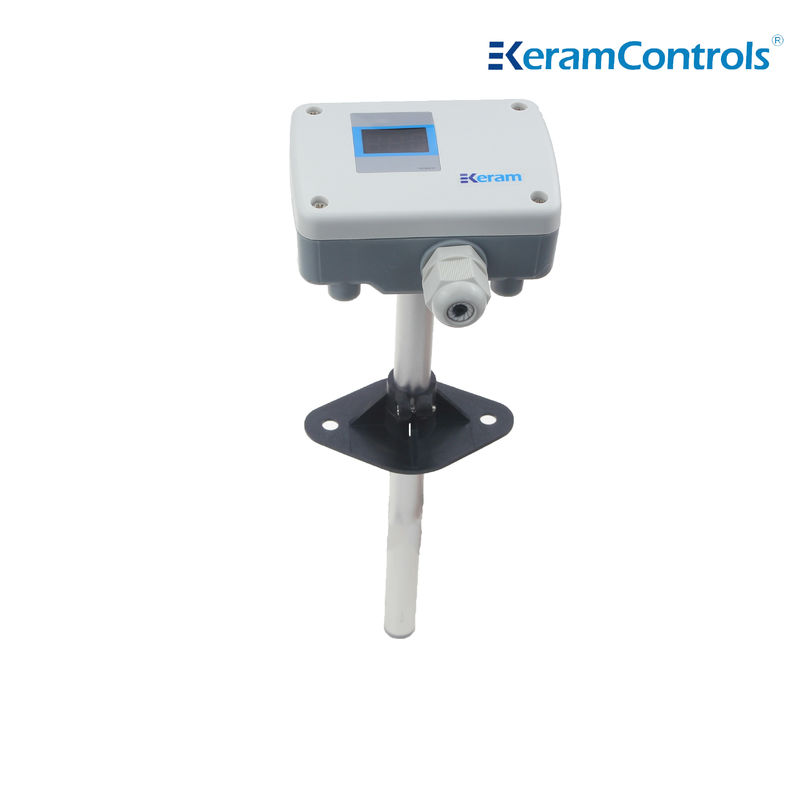

KAV110 series wind speed transmitter adopts ABS material, which has the characteristics of high temperature resistance and anti-corrosion, so that this series of wind speed transmitter can work in relatively harsh environment, and ensure its own accuracy and stability.
| Model | KAV110 |
| Power supply | 16-24VAC or VDC |
| output | 4-20mA/ 0-5V/ 0-10V/ RS-485 |
| Operating temperature | -5…+70℃ |
| Storage temperature | -20…+70℃ |
| Permissible humidity | 0…90 %RH |
| Measuring range | 1~30m/s |
| Accuracy | 0.2%FS |
| Working frequency | 50Hz |
| Maximum air velocity | 30m/s |
| Electromagnetic compatibility | EN61326-1 standard (industrial environment) |
| Housing material | ABS |
| Protection | IP65/ NEMA4 |
| Cable gland | M16*1.5 |
Model-Output-Display-Range-Probe
| Model | Output | Display | Range | Probe | ||||
| KAV110 | 0-5V | (1) | Yes | (Y) | 0…1 m/s | (A) | 220mm(Standard) | (S) |
| 0-10V | (2) | No | (N) | 0…2m/s | (B) | Customized | ||
| 4-20mA | (3) | 0…5 m/s | (C) | |||||
| Rs-485 | (4) | 0…10 m/s | (D) | |||||
| 0…15 m/s | (E) | |||||||
| 0…20 m/s | (F) | |||||||
| 0…30 m/s | (G) | |||||||
1 Q: What's the delivery time?
A: According to the specification and quantity of your order, generally 4
days for normal standard products within 10pcs.
2 Q:Are you manufacturer or trading company?
A: We are manufacturer with many years of experience.We have our
own factory.Welcome to visit our factory.
3 Q: Can we use our logo on the products?
A: Yes.We can provide OEM service.
4 Q: Do you have products with ex-proof certificate?
A: Yes,we can offer intrinsic-safety and flame proof certificates.
5 Q: What is the warranty of your products?
A: Normal is 12 months.
6 Q: What's the means of transport?
A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
