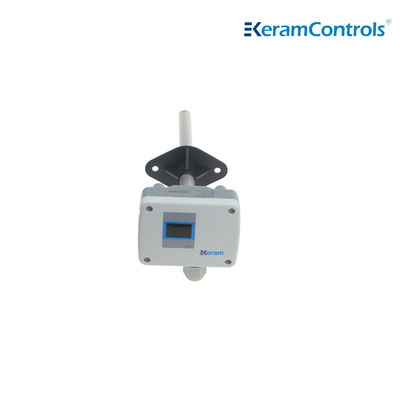

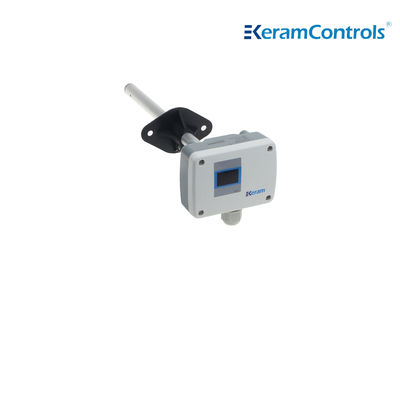

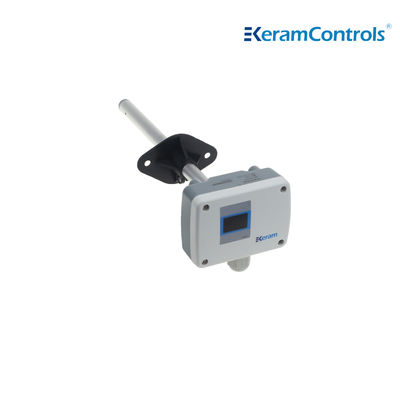

0-10V Air Velocity Transmitter For Medicine Field

0-10V Air Velocity Transmitter For Medicine Field
0-10V Air Velocity Transmitter For Medicine Field
0-10V Air Velocity Transmitter For Medicine Field 0-10V Air Velocity Transmitter For Medicine Field 0-10V Air Velocity Transmitter For Medicine Field 0-10V Air Velocity Transmitter For Medicine Field

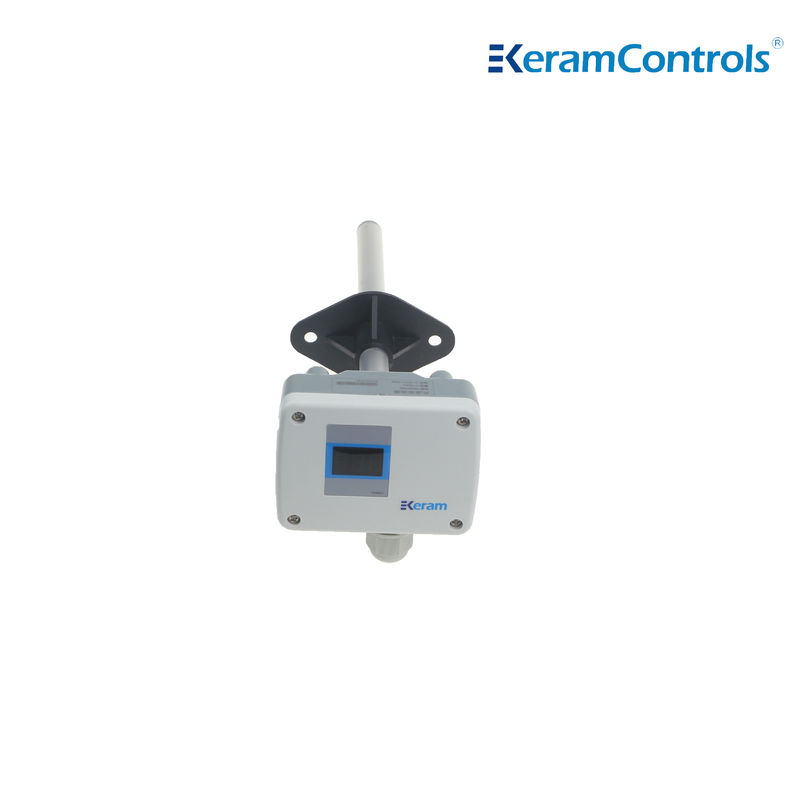

Large Image :  0-10V Air Velocity Transmitter For Medicine Field

Product Details:
Place of Origin: China
Brand Name: KeramControls
Certification: CE
Model Number: KAV110
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Packaging Details: Carton
Delivery Time: 7 days
Payment Terms: L/C, T/T

0-10V Air Velocity Transmitter For Medicine Field

Description
Measuring Range: 1~30m/s Accuracy: 0.2%FS
Working Frequency: 50Hz
High Light:

10V Air Velocity Transmitter

,

Medicine Field Air Velocity Transmitter

,

Medicine Air Velocity Transmitter

0-10V air velocity transmitter for medicine field



Description



KAV110 series wind speed transmitter is a relatively stable transmitter, which can measure the air volume very quickly and accurately, and has the characteristics of large range and high precision, which is the best choice for customers.


Specification



Model KAV110
Power supply 16-24VAC or VDC
output 4-20mA/ 0-5V/ 0-10V/ RS-485
Operating temperature -5…+70℃
Storage temperature -20…+70℃
Permissible humidity 0…90 %RH
Measuring range 1~30m/s
Accuracy 0.2%FS
Working frequency 50Hz
Maximum air velocity 30m/s
Electromagnetic compatibility EN61326-1 standard (industrial environment)
Housing material ABS
Protection IP65/ NEMA4
Cable gland M16*1.5

Dimensions(mm)



0-10V Air Velocity Transmitter For Medicine Field 0


Ordering Guide



Model-Output-Display-Range-Probe



Model Output Display Range Probe
KAV110 0-5V (1) Yes (Y) 0…1 m/s (A) 220mm(Standard) (S)
0-10V (2) No (N) 0…2m/s (B) Customized
4-20mA (3)     0…5 m/s (C)
Rs-485 (4)     0…10 m/s (D)
        0…15 m/s (E)
        0…20 m/s (F)
        0…30 m/s (G)





0-10V Air Velocity Transmitter For Medicine Field 1



FAQ



1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.



2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.



3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.



4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.



5 Q: What is the warranty of your products?

A: Normal is 12 months.



6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
