0-5m/S Air Velocity Transmitter For HVAC
| Storage Temperature: | -20…+70℃ | Working Frequency: | 50Hz |
|---|---|---|---|
| Cable Gland: | M16*1.5 | ||
| Highlight |
M16x1.5 Air Velocity Transmitter,5m/S HVAC Air Velocity Transmitter,5m/S Air Velocity Transmitter |
||

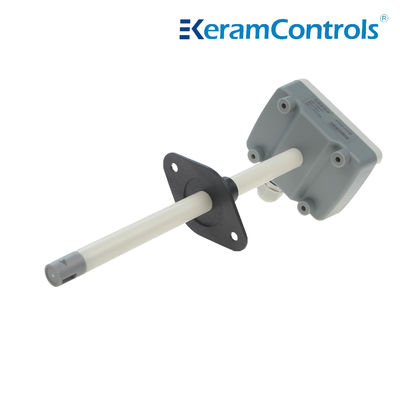

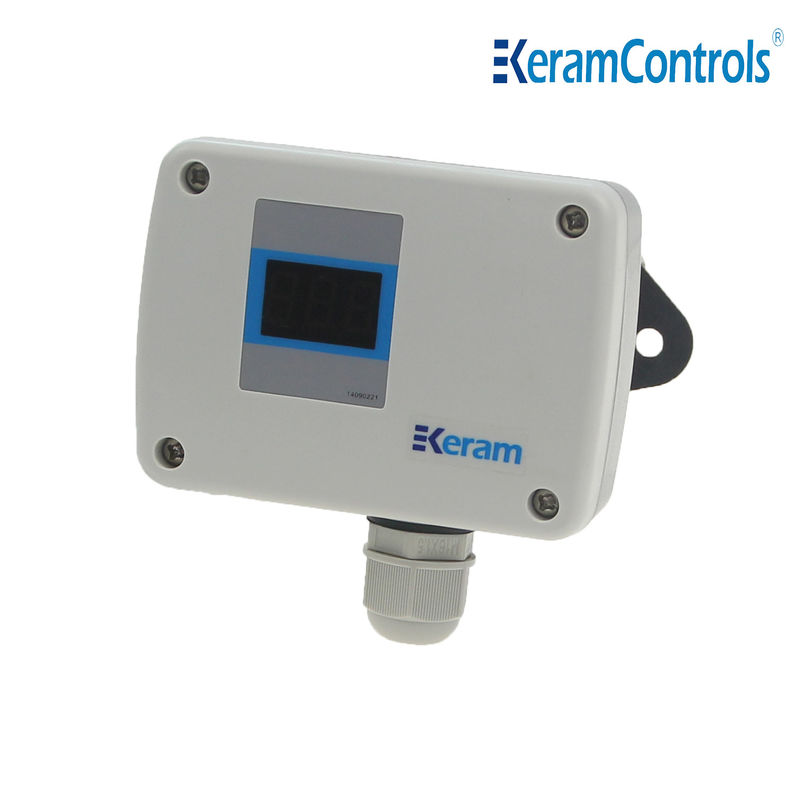

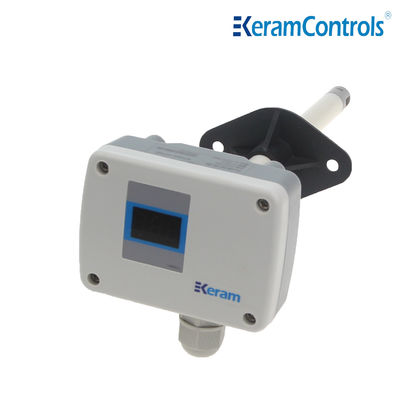

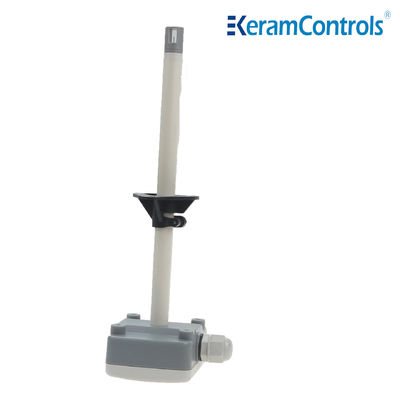

0-5m/s air velocity transmitter for HVAC
Description
The KAV110 series of air velocity transmitters are specially designed to obtain accurate and reliable measurement results in building control applications and various ventilation systems. The power supply of this transmitter is 16-24VAC or VDC , which can meet the use of customers in different countries and regions.
Specification
| Model | KAV110 |
| Power supply | 16-24VAC or VDC |
| output | 4-20mA/ 0-5V/ 0-10V/ RS-485 |
| Operating temperature | -5…+70℃ |
| Storage temperature | -20…+70℃ |
| Permissible humidity | 0…90 %RH |
| Measuring range | 1~30m/s |
| Accuracy | 0.2%FS |
| Working frequency | 50Hz |
| Maximum air velocity | 30m/s |
| Electromagnetic compatibility | EN61326-1 standard (industrial environment) |
| Housing material | ABS |
| Protection | IP65/ NEMA4 |
| Cable gland | M16*1.5 |
Dimensions(mm)
Ordering Guide
Model-Output-Display-Range-Probe
| Model | Output | Display | Range | Probe | ||||
| KAV110 | 0-5V | (1) | Yes | (Y) | 0…1 m/s | (A) | 220mm(Standard) | (S) |
| 0-10V | (2) | No | (N) | 0…2m/s | (B) | Customized | ||
| 4-20mA | (3) | 0…5 m/s | (C) | |||||
| Rs-485 | (4) | 0…10 m/s | (D) | |||||
| 0…15 m/s | (E) | |||||||
| 0…20 m/s | (F) | |||||||
| 0…30 m/s | (G) | |||||||
FAQ
1 Q: What's the delivery time?
A: According to the specification and quantity of your order, generally 4
days for normal standard products within 10pcs.
2 Q:Are you manufacturer or trading company?
A: We are manufacturer with many years of experience.We have our
own factory.Welcome to visit our factory.
3 Q: Can we use our logo on the products?
A: Yes.We can provide OEM service.
4 Q: Do you have products with ex-proof certificate?
A: Yes,we can offer intrinsic-safety and flame proof certificates.
5 Q: What is the warranty of your products?
A: Normal is 12 months.
6 Q: What's the means of transport?
A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
