Product Details:
|
Permissible Humidity: | 0…90 %RH | Accuracy: | 0.2%FS |
---|---|---|---|
Electromagnetic Compatibility: | EN61326-1 Standard (industrial Environment) | ||
Highlight: | 10s Air Velocity Transmitter,RS485 Building System Air Velocity Transmitter,Building System Velocity Transmitter |

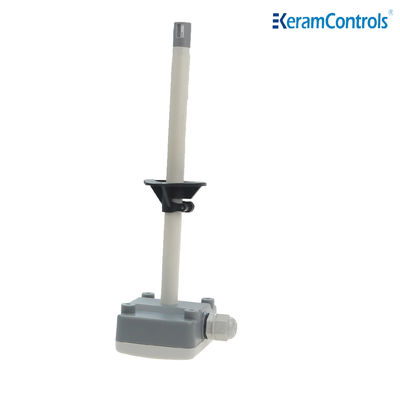

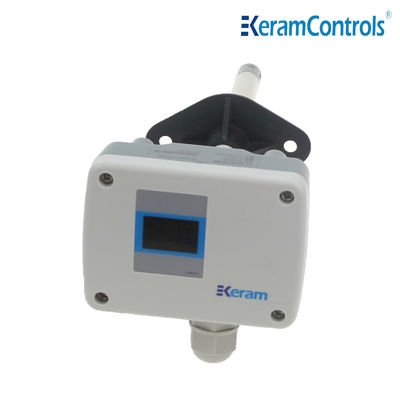

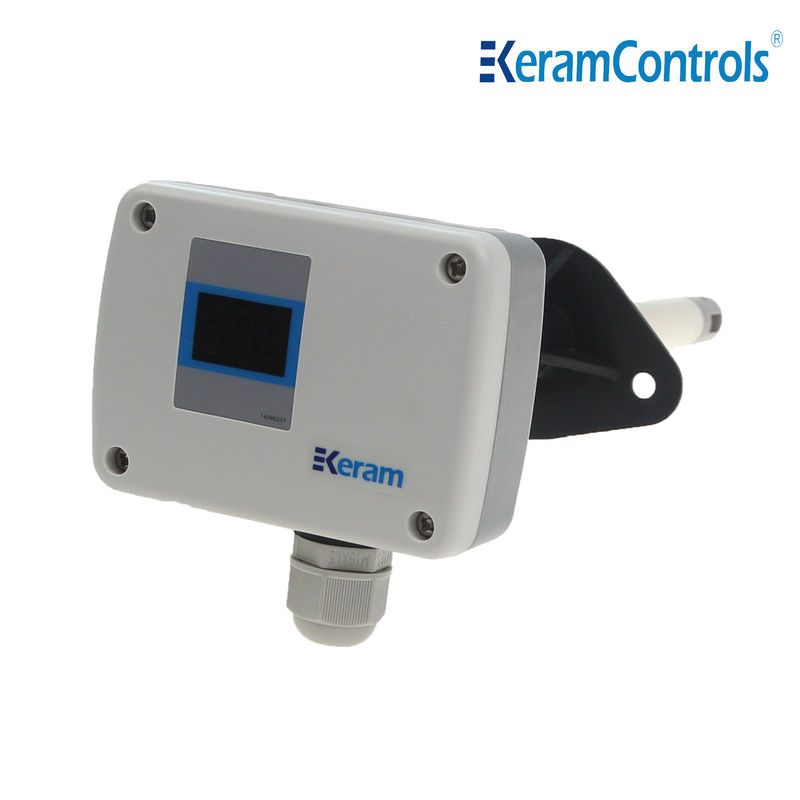

The KAV110 series wind speed transmitter adopts a new wind speed sensor, which combines the advantages of high-quality thin film measurement technology and the latest plastic packaging process. These innovative designs make the wind speed sensor durable and have excellent anti-pollution ability , so that the KAV110 transmitter obtains good long-term stability.
Model | KAV110 |
Power supply | 16-24VAC or VDC |
output | 4-20mA/ 0-5V/ 0-10V/ RS-485 |
Operating temperature | -5…+70℃ |
Storage temperature | -20…+70℃ |
Permissible humidity | 0…90 %RH |
Measuring range | 1~30m/s |
Accuracy | 0.2%FS |
Working frequency | 50Hz |
Maximum air velocity | 30m/s |
Electromagnetic compatibility | EN61326-1 standard (industrial environment) |
Housing material | ABS |
Protection | IP65/ NEMA4 |
Cable gland | M16*1.5 |
Model-Output-Display-Range-Probe
Model | Output | Display | Range | Probe | ||||
KAV110 | 0-5V | (1) | Yes | (Y) | 0…1 m/s | (A) | 220mm(Standard) | (S) |
0-10V | (2) | No | (N) | 0…2m/s | (B) | Customized | ||
4-20mA | (3) | 0…5 m/s | (C) | |||||
Rs-485 | (4) | 0…10 m/s | (D) | |||||
0…15 m/s | (E) | |||||||
0…20 m/s | (F) | |||||||
0…30 m/s | (G) |
1 Q: What's the delivery time?
A: According to the specification and quantity of your order, generally 4
days for normal standard products within 10pcs.
2 Q:Are you manufacturer or trading company?
A: We are manufacturer with many years of experience.We have our
own factory.Welcome to visit our factory.
3 Q: Can we use our logo on the products?
A: Yes.We can provide OEM service.
4 Q: Do you have products with ex-proof certificate?
A: Yes,we can offer intrinsic-safety and flame proof certificates.
5 Q: What is the warranty of your products?
A: Normal is 12 months.
6 Q: What's the means of transport?
A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
