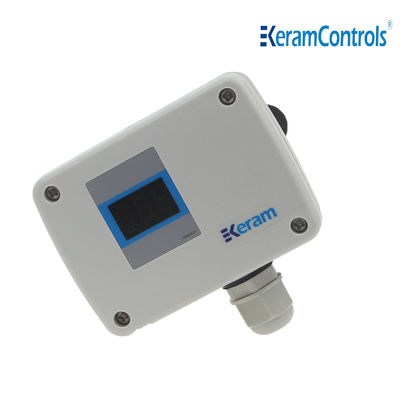

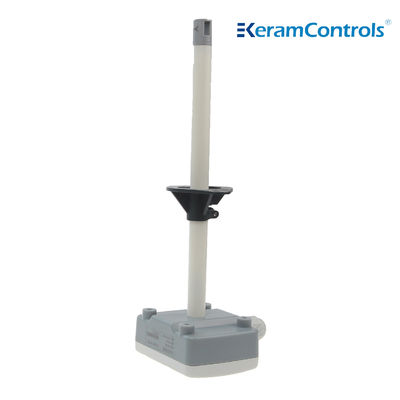

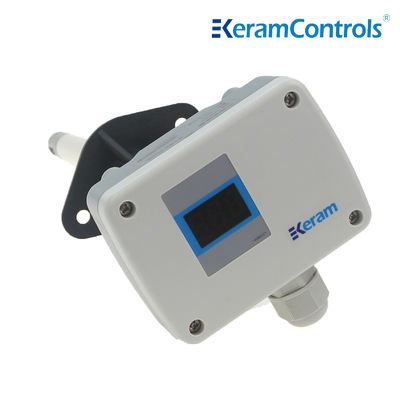

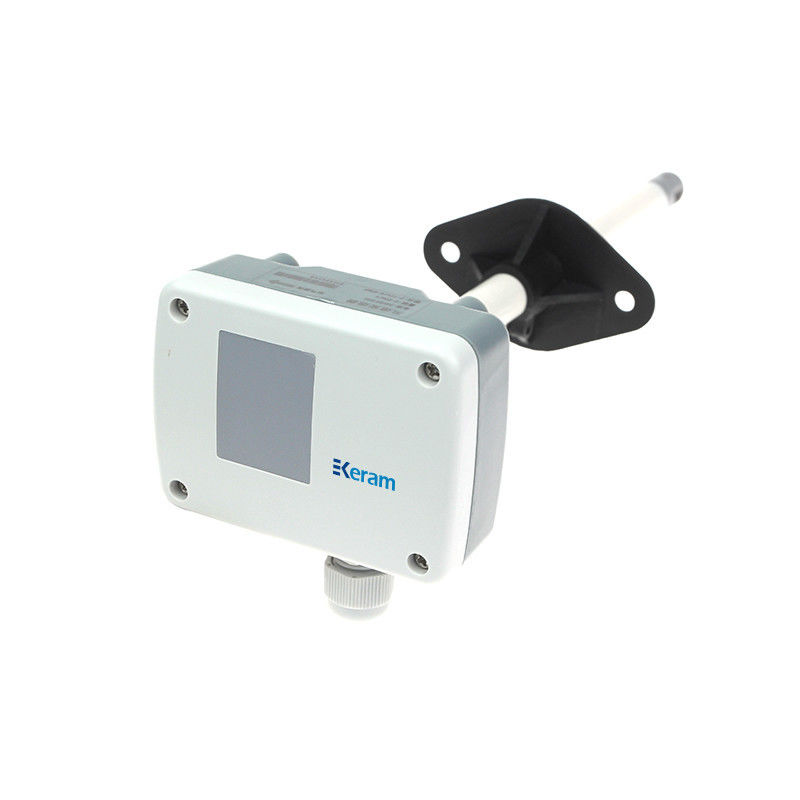

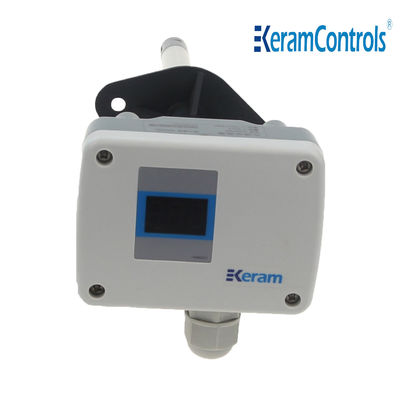

0-20m/S Air Velocity Transmitter For Laboratory
| Measuring Range: | 1~30m/s | Electromagnetic Compatibility: | EN61326-1 Standard (industrial Environment) |
|---|---|---|---|
| Cable Gland: | M16*1.5 | ||
| Highlight |
20m/S Air Velocity Transmitter,Laboratory Air Velocity Transmitter,Laboratory Velocity Transmitter |
||
0-20m/s air velocity transmitter for laboratory
Description
The wind speed sensor is a wind speed sensor designed according to the narrow space. The sensor and transmitter are integrated in the small detection instrument. The sensor adopts the standard hot film element of electric lift. It can be used for measuring wind speed with extremely high accuracy and small volume. With air volume, surface wind speed, etc., the low-power design can also be used for handheld devices.
Specification
| Model | KAV110 |
| Power supply | 16-24VAC or VDC |
| output | 4-20mA/ 0-5V/ 0-10V/ RS-485 |
| Operating temperature | -5…+70℃ |
| Storage temperature | -20…+70℃ |
| Permissible humidity | 0…90 %RH |
| Measuring range | 1~30m/s |
| Accuracy | 0.2%FS |
| Working frequency | 50Hz |
| Maximum air velocity | 30m/s |
| Electromagnetic compatibility | EN61326-1 standard (industrial environment) |
| Housing material | ABS |
| Protection | IP65/ NEMA4 |
| Cable gland | M16*1.5 |
Dimensions(mm)
Ordering Guide
Model-Output-Display-Range-Probe
| Model | Output | Display | Range | Probe | ||||
| KAV110 | 0-10V | (1) | Yes | (Y) | 0…1 m/s | (A) | 220mm(Standard) | (S) |
| 4-20mA | (2) | No | (N) | 0…2m/s | (B) | Customized | ||
| Rs-485 | (3) | 0…5 m/s | (C) | |||||
| 0…10 m/s | (D) | |||||||
| 0…15 m/s | (E) | |||||||
| 0…20 m/s | (F) | |||||||
| 0…30 m/s | (G) | |||||||
FAQ
1 Q: What's the delivery time?
A: According to the specification and quantity of your order, generally 4
days for normal standard products within 10pcs.
2 Q:Are you manufacturer or trading company?
A: We are manufacturer with many years of experience.We have our
own factory.Welcome to visit our factory.
3 Q: Can we use our logo on the products?
A: Yes.We can provide OEM service.
4 Q: Do you have products with ex-proof certificate?
A: Yes,we can offer intrinsic-safety and flame proof certificates.
5 Q: What is the warranty of your products?
A: Normal is 12 months.
6 Q: What's the means of transport?
A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
