Quality 0-90RH Air Velocity Transmitter For HVAC factory

0-90RH Air Velocity Transmitter For HVAC

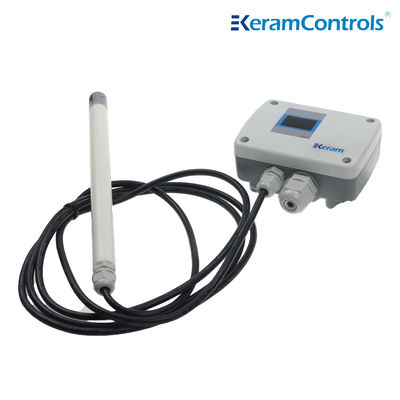

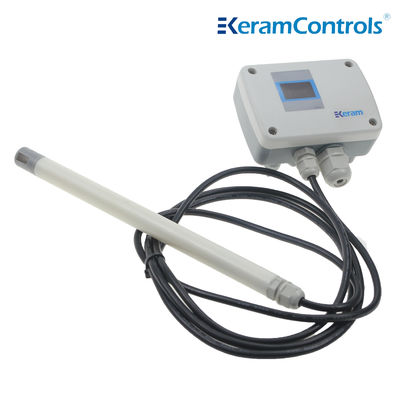

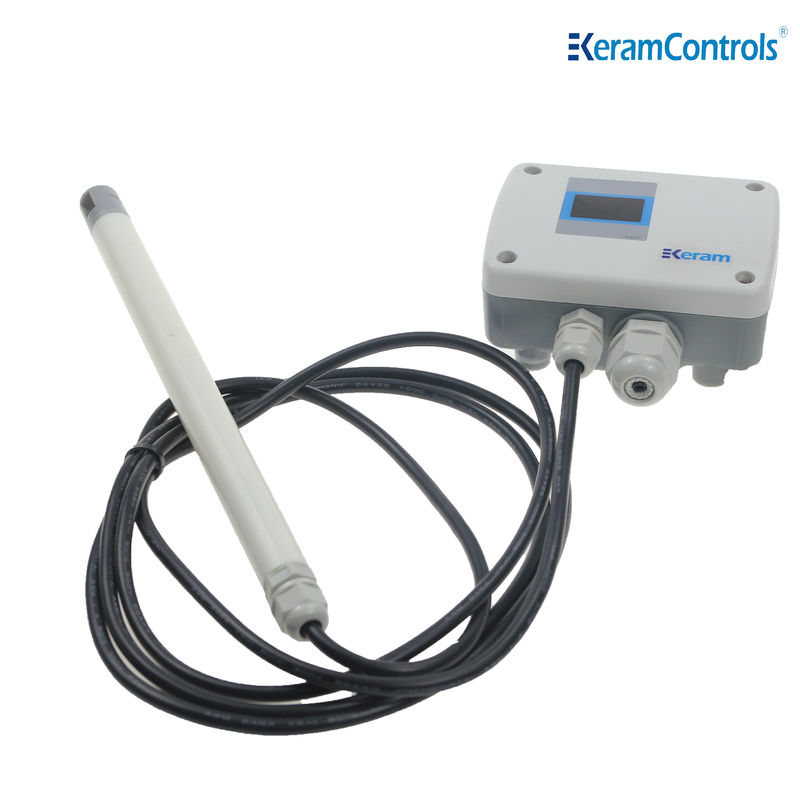

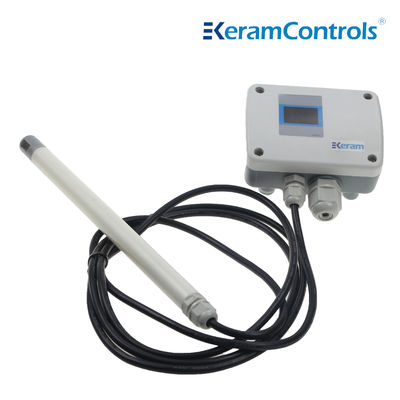

Name: 0-90RH Air Velocity Transmitter For HVAC
Brand: Keram (Nanjing)ELECTRICAL Equipment Co., Ltd.
SKU: KAV120
Price: 106.00 USD
Availability: InStock

Place of Origin: China

Brand Name: KeramControls

Certification: CE

Model Number: KAV120

Minimum Order Quantity: 10 pcs

Tags:

M16 Air Velocity Transmitter

30m/s Air Velocity Transmitter

EN61326-1 Velocity Transmitter

Permissible Humidity:

0…90 %RH

Housing Material:

ABS

Measuring Range:

1~30m/s

Highlight

90RH Air Velocity Transmitter

HVAC Air Velocity Transmitter

30m/s Air Transmitter

Product Description

0-90RH air velocity transmitter for HVAC

Description

The wind speed transmitter flows through the air, and the balance between the area A and the area B is destroyed, and the wind speed can be accurately calculated by calculating the contrast between them. Effectively withstand the interference of magnetic fields to ensure the stable operation of the equipment.

Specification

Model	KAV120
Power supply	16-24VAC or VDC
output	4-20mA/ 0-5V/ 0-10V/ RS-485
Operating temperature	-5…+70℃
Storage temperature	-20…+70℃
Permissible humidity	0…90 %RH
Measuring range	1~30m/s
Accuracy	0.2%FS
Working frequency	50Hz
Maximum air velocity	30m/s
Electromagnetic compatibility	EN61326-1 standard (industrial environment)
Housing material	ABS
Protection	IP65/ NEMA4
Cable gland	M16*1.5

Dimensions

0-90RH Air Velocity Transmitter For HVAC 0

Ordering Guide

Model-Output-Display-Range-Probe

Model	Output		Display		Range		Probe
KAV120	4-20mA(3 wire)	(F)	YES	(D)	0…1 m/s	(1)	RVVR0.5mm²	70
	0-10V(3 wire)	(G)	No	(-)	0…2m/s	(2)	RVVR1mm²	200
	Rs-485	(H)			0…5 m/s	(3)	RVVR1.5mm²	300
					0…10 m/s	(4)
					0…15 m/s	(5)
					0…20 m/s	(6)
					0…30m/s	(7)

0-90RH Air Velocity Transmitter For HVAC 1

FAQ

1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.

2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.

3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.

4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.

5 Q: What is the warranty of your products?

A: Normal is 12 months.

6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
